Griffin Universal Fluid Cooler, Large

No reviews yet Write a Review

Griffin 19.75 x 13" universal fluid cooler


This is the Heavy Duty "large" Griffin Aluminum Universal Fluid Cooler.

Can be used for engine oil, transmission fluid or power steering fluid cooling.


  • Overall size is 19.75" x 13" x 6.5" thick (includes cooler and fan).
  • Actual core size is 13.75" x 12.82" x 3"
  • Rugged construction is built for off-road use.
  • 1.75" wide single row, dual pass core.
  • Aluminum Bar and Plate construction.
  • Includes a powerful 12" Spal brand fan moves 1636cfm.

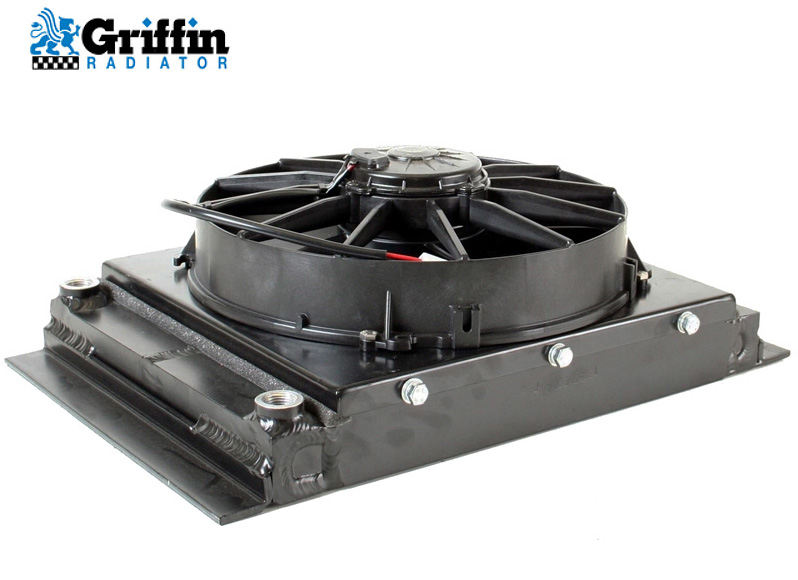

  • This part number includes the Spal fan and aluminum shroud (as pictured).
  • Built in mounting tabs are thick and can be drilled and tapped to suit your mounting location.
  • 1/2" female NPT fittings are standard (inlet & outlet).
  • Black in color.
  • Made in USA!



  • This is the exact same cooler we use on our KOH race car as an engine oil cooler.

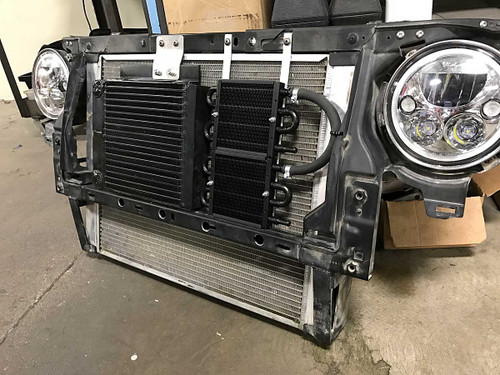

  • This is the same cooler Tony uses in the Terremoto and a transmission oil cooler.
  • Great for use with V-8 conversions.

Be sure to click on More Pictures to see larger more detailed images.
