These are top quality shock mounting brackets from GenRight Off Road. They are Laser cut from Heavy Duty 3/16" thick plate steel and CNC formed into shape for easy installation.
They are perfect for lower mounting of coil over (or other high grade) shocks to axle tubes or knuckles.
The benefit of a formed mount like this, is they are much stronger and provide more weld surface area than two individually welded tabs.
Parallel 1/2" diameter holes are perfect for Grade 8 mounting hardware (recommend 1/2-20 x 2-1/2" long bolt).
Sold as a pair.
No returns accepted after the have been tacked in place!
NOTES:
- Requires welding to be properly installed.
- When ordering please choose the proper width between the tabs 1.25" or 1.50" (1-1/4" is most common with most brand shocks, but check the width of your shock spacers to be sure) AND radius of mounting surface when placing your order.

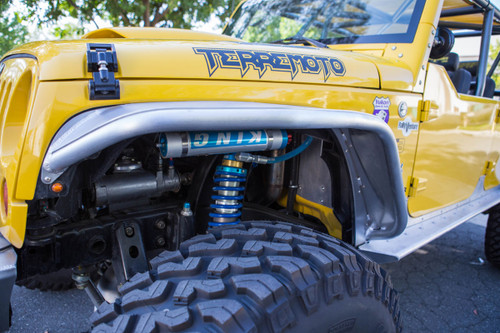

Be sure to click on More Pictures to see larger more detailed images of this product installed on a Jeep.
