This is the New Ram Assist Steering Kit from GenRight Off Road.
This is an upgrade for the Jeep Wrangler JK.
This is an entirely new approach to steering on the JK AND the same thing we have used on our Terremoto Jeep Wrangler JKU since 2019.
This high quality Box/Kit is a suitable replacement for any brand ram assist box for the Jeep JK or JKU.
The valving is to Tony's spec with a better feel in the steering wheel, but great drivability at highway speeds.
Features:
- Modified Saginaw box
- For 4 door Jeep Wrangler JK (2007 to current).
- Reuses the stock JK pitman arm.
- High volume & Pressure Pump.
- Mounting Bracket for 3.6L V6 Engine.
- Pulley for Pump.
- Fluid Reservoir and mount.
- Hoses to and from Reservoir and Hose Fittings.
- (2) Ram Hoses and (4) Hose Fittings.
- Ram & Heim Rod Ends.
- Tabs to weld Ram to Tie Rod.
- All necessary hardware.
- 100% Made in USA.
Kit Includes (everything pictured):

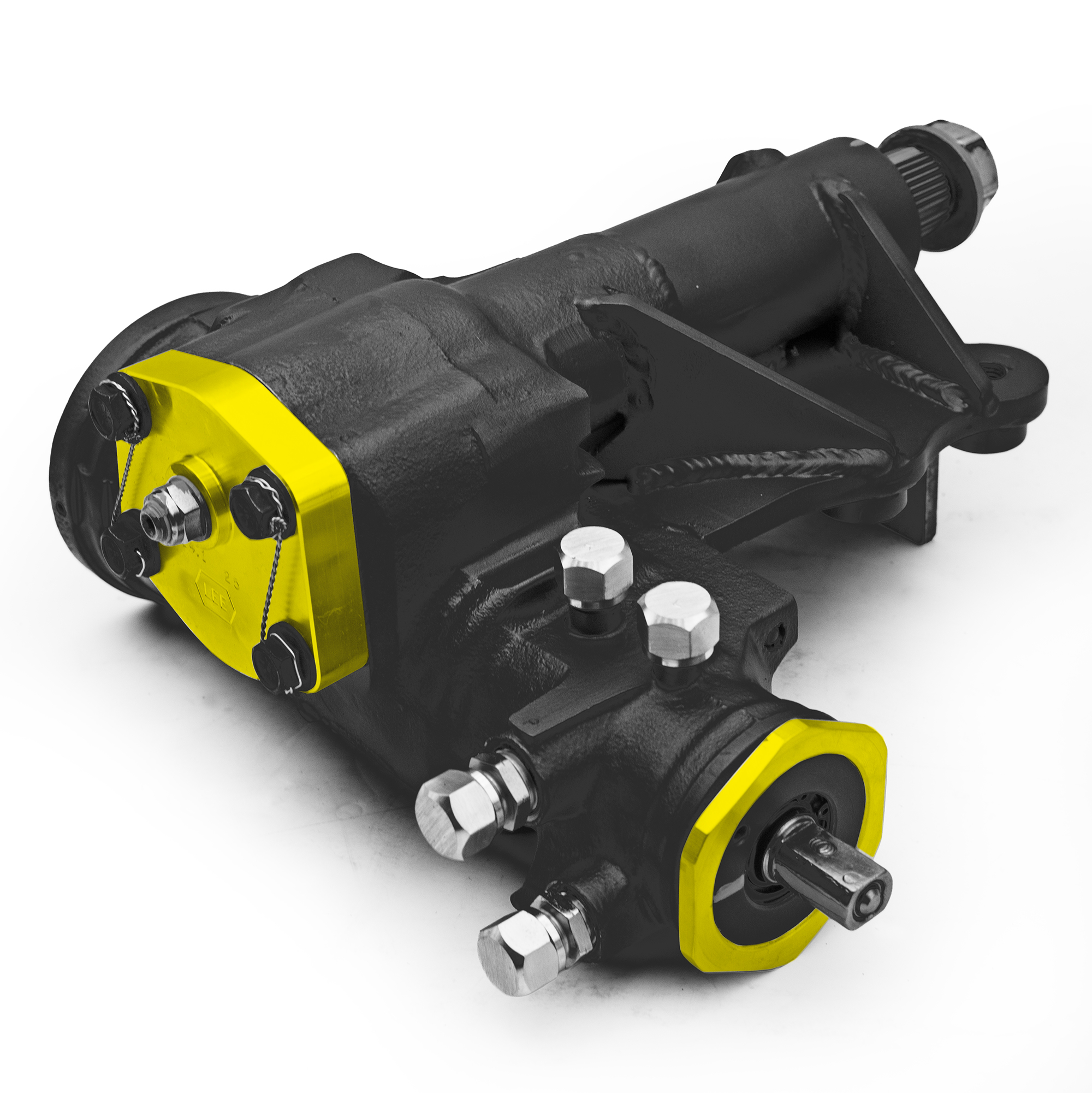

- New Steering Box.
- High volume & Pressure Pump.
- Mounting Bracket for 3.6L V6 Engine.
- Pulley for Pump.
- Fluid Reservoir and mount.
- Hoses to and from Reservoir and Hose Fittings.
- (2) Ram Hoses and (4) Hose Fittings.
- Ram & Heim Rod Ends.
- Tabs to weld Ram to Tie Rod.
- All necessary hardware for mounting.
- 4 Pass Cooler and hoses.
NOTES:
- This is a full steering system kit.
- No fluid is included (see recommended fluid below).
- This steering box was developed for long travel suspension with heims (not tie rod ends).
- Primarily designed for use with the GenRight CrMo high steering tie rod and drag link, but could be adapted to others.
- Use only Swepco 715 or AC Delco Power Steering Fluid.
- When installing steering on a JK, be aware of the clock spring in the steering column! Strap the steering wheel before removing the box.
Please click on the Pictures to see larger images with more detail
