This is the New Ram Assist Steering Kit from GenRight Off Road.
This is an upgrade for the Jeep Wrangler JL & JT
This is an entirely new approach to steering on the JL AND the same thing we have used on our Aftershock Jeep Wrangler JLU since 2025.
This high quality Box/Kit is a suitable replacement for any brand ram assist box for the Jeep JL or JLU or JT.
The valving is to Tony's spec with a better feel in the steering wheel, but great drivability at highway speeds.
Features:

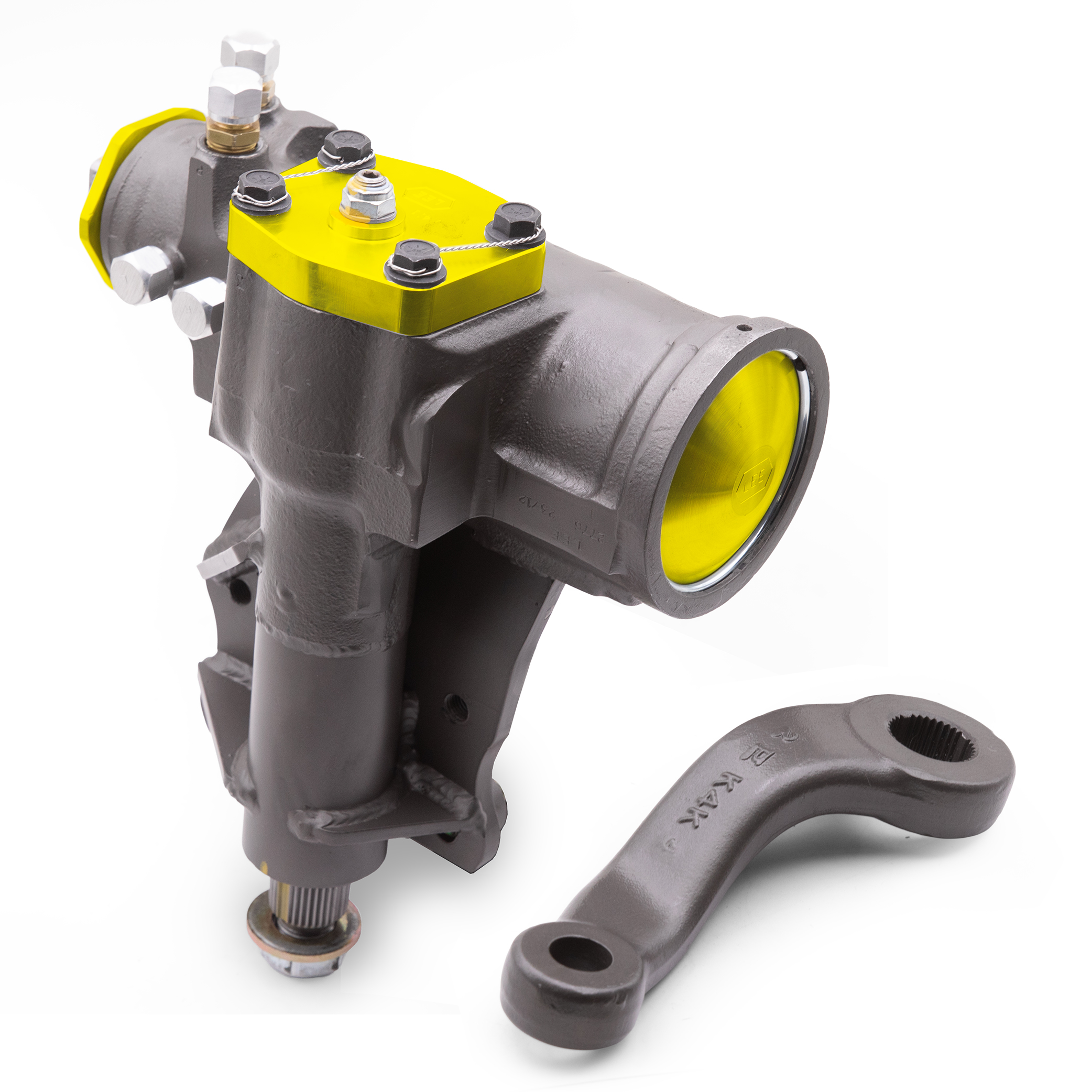

- Modified Saginaw box
- For 4 door Jeep Wrangler JL (2018 to current).
- Includes new forged steel pitman arm.
- High volume & Pressure Pump.
- Mounting Bracket for Jeep 3.6L V6 Engine.
- Pulley for Pump.
- Fluid Reservoir and mount.
- Hoses to and from Reservoir and Hose Fittings.
- (2) Ram Hoses and (4) Hose Fittings.
- Ram & Heim Rod Ends.
- Tabs to weld Ram to Tie Rod.
- All necessary hardware.
- 100% Made in USA.

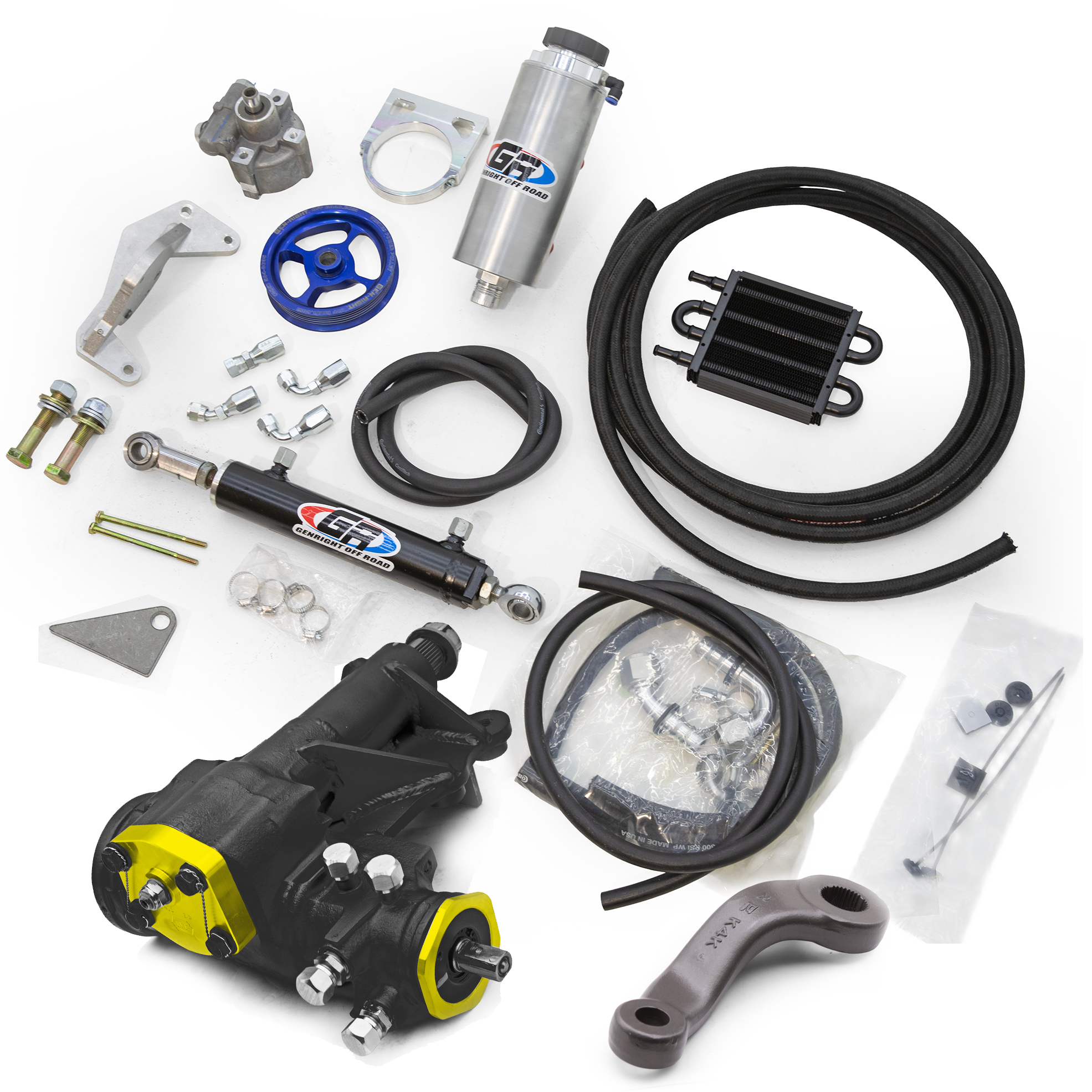

Kit Includes (everything pictured):
- New Steering Box.
- High volume & Pressure Pump.
- Mounting Bracket for 3.6L V6 Engine.
- Pulley for Pump.
- Fluid Reservoir and mount.
- Hoses to and from Reservoir and Hose Fittings.
- (2) Ram Hoses and (4) Hose Fittings.
- Ram & Heim Rod Ends.
- Tabs to weld Ram to Tie Rod.
- All necessary hardware for mounting.
- 4 Pass Cooler and hoses.
NOTES:
- This is a full steering system kit.
- No fluid is included (see recommended fluid below).
- This steering box was developed for long travel suspension with heims (not tie rod ends).
- Primarily designed for use with the GenRight CrMo high steering tie rod and drag link, but could be adapted to others.
- Use only Swepco 715 or AC Delco Power Steering Fluid.
- When installing steering on a JL, be aware of the clock spring in the steering column! Strap the steering wheel before removing the box.
Please click on the Pictures to see larger images with more detail
