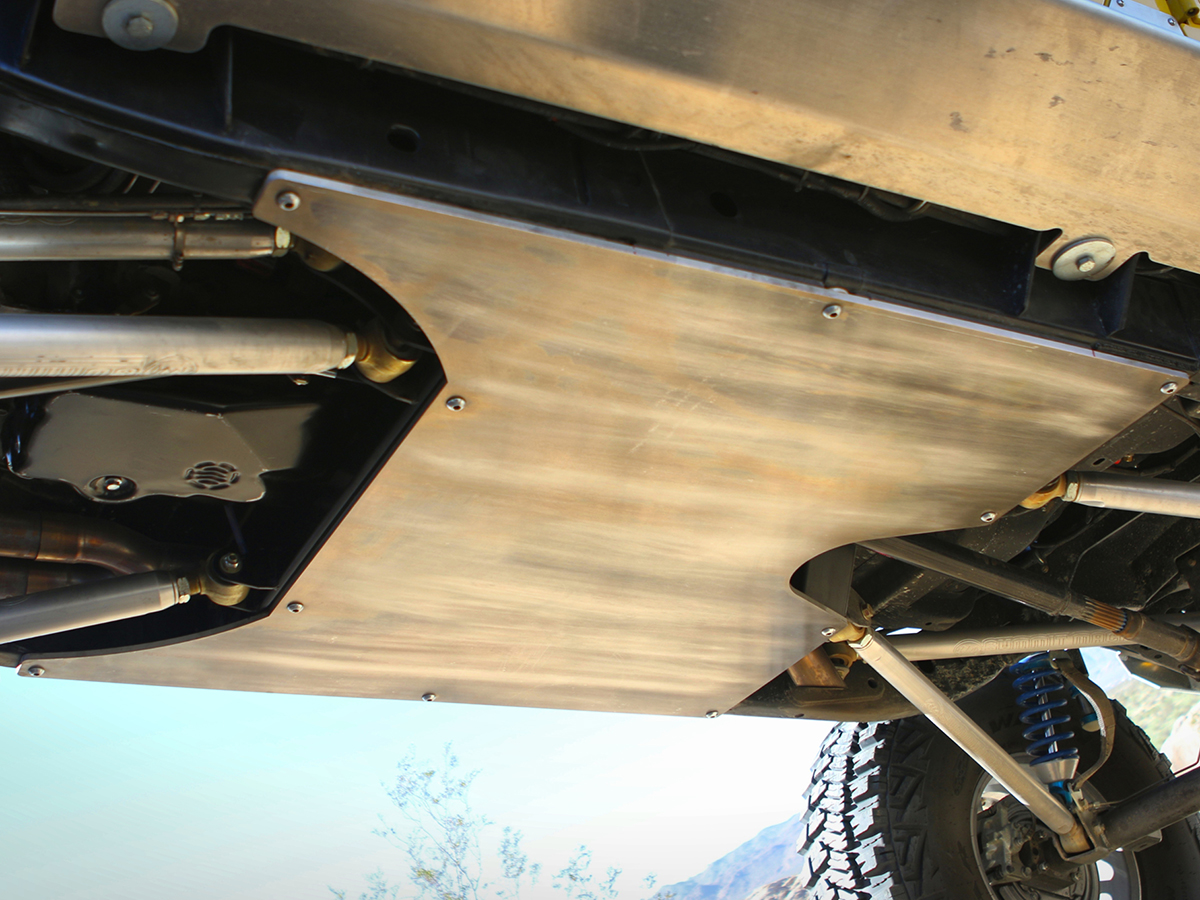

This is the New GenRight Aluminum FLAT Belly transfer case skid plate for a 2 door Jeep Wrangler JK.
It increases your ground clearance by up to 2-1/2" inches by replacing the factory skid plate with a lower-profile and more heavy duty skid plate.

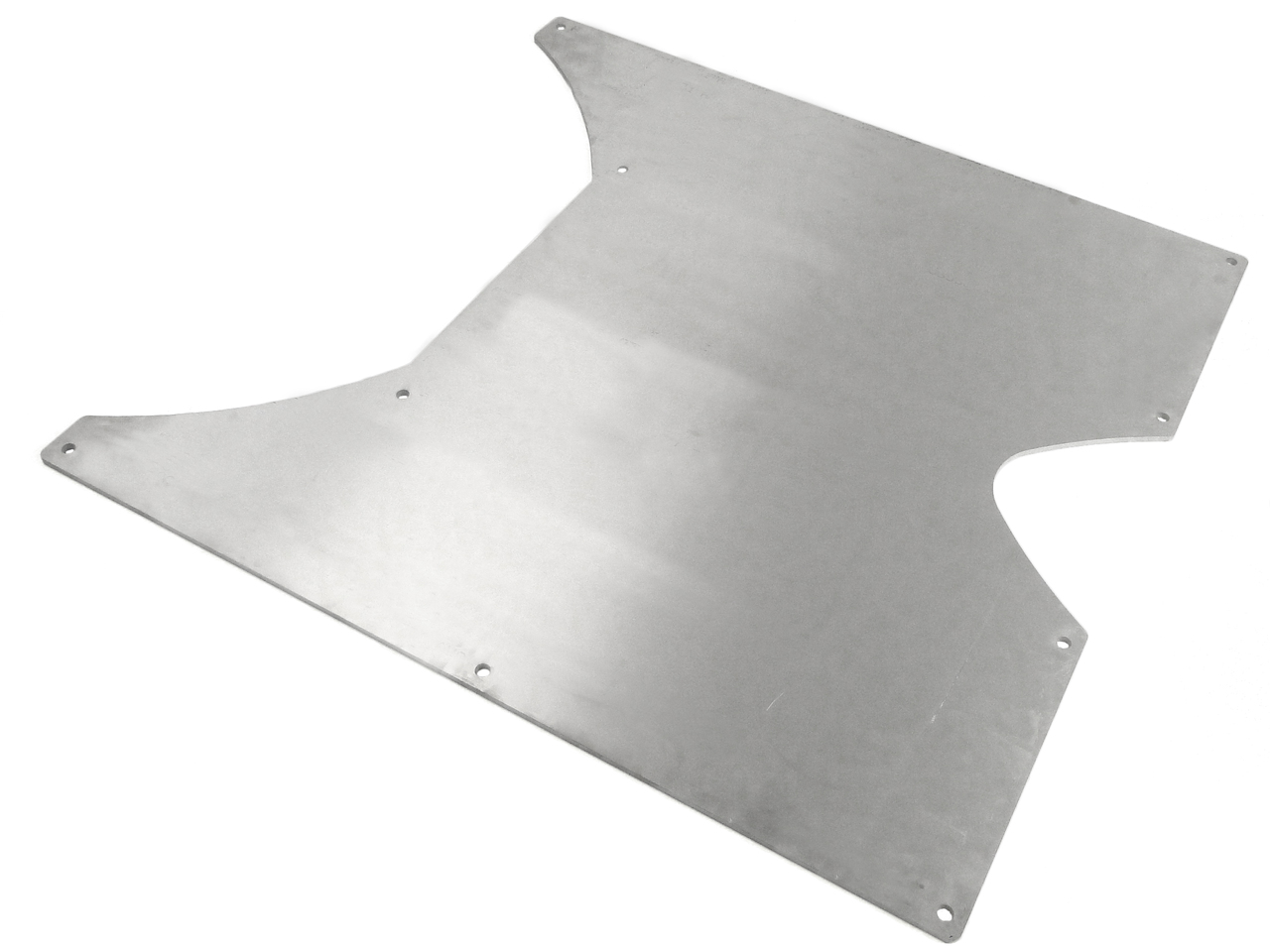

This high clearance, smooth bottom skid plate is laser cut and CNC bent from 5/16" thick 7075 Aluminum. Stronger and thicker than the stock plate to provide strong but lightweight protection to your undercarriage.
IMPORTANT: This skid plate was designed to work with the GenRight JK Link Suspension Package. Our kit was designed to relocate the gas tank to the rear, thereby allowing a completely flat belly.
NOTES:
- This kit provides the maximum amount of ground clearance possible, but requires some fine tuning of the rear pinion angle to eliminate driveshaft vibration.
- Requires use of our transmission and suspension cross member kits.
- Average install time is 6 hours and requires supporting the transmission and transfer case to install.
FYI: We offer this same skid plate in a tougher grade, 6061-T6 (SKP8620).
