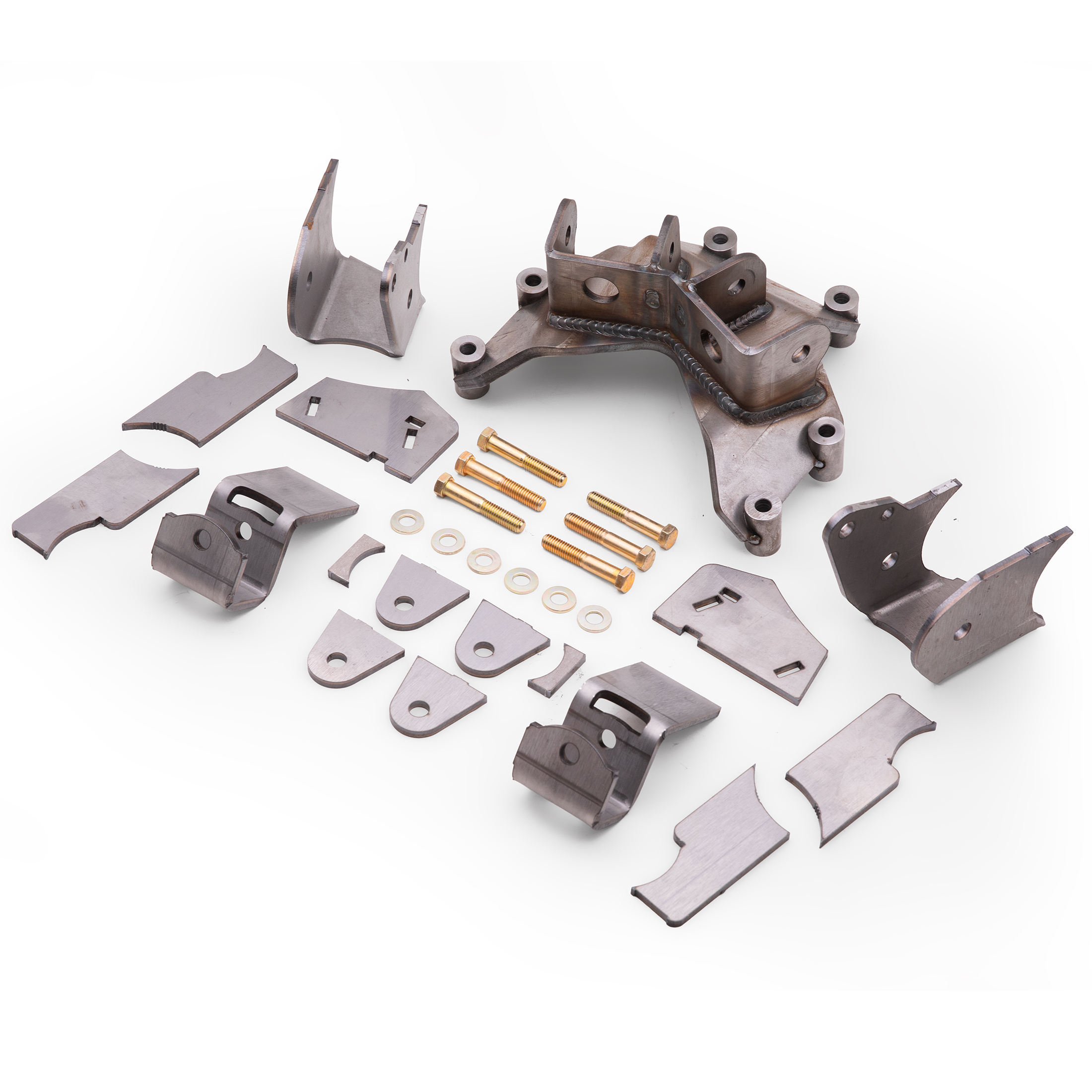

This is the GenRight Elite Suspension REAR Axle Side Bracket Kit for a Dynatrac Pro Rock 80 with 4" diameter axle tubes for Off Road Jeep Wranglers.
The mounts were designed as part of the GenRight Elite 4 link rear suspension system and need to be located and welded to the rear axle housing.
- Laser cut from super thick 1/4" plate steel.
- Radius to fit on axle tube.
- CNC formed shape for extra strength.
- Opening is 2-5/8" wide (to fit Johnny Joints).
- Mounting holes are for a 9/16" size bolt.
- Includes two 1/4" thick gussets to reinforce the outside.
- Includes the bridge with upper link mounts.
