Made in the USA Since 2006

Griffin Aluminum Radiator w/Fan, Jeep JK

MSRP: $1,299.99
Was: $1,299.99
Now: $1,247.99
( saved $52.00 )
No reviews yet Write a Review
P/N:
GRCU-00152

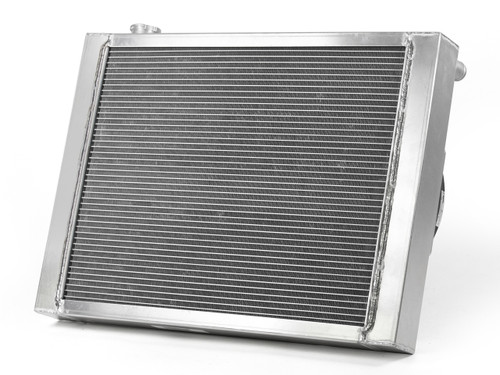

This is the top of the line Griffin All Aluminum radiator which is a direct fit for the Jeep Wrangler JK (2007-2017).

This is part of Griffin's new MaxCool package where they take out all the guess work and provide you everything you need to swap over to a super efficient aluminum radiator with an electric fan.

FEATURES:

  • Crossflow style.
  • Direct bolt-in into a factory Jeep JK grille (2007-2017)
  • This part number includes: radiator cap, wiring harness and temp sensor.
  • Light weight Aluminum Construction.
  • Single row.
  • Only a total of 4.54" thick (radiator and fan).
  • Inlet: Upper Drivers Side
  • Outlet: Lower Passenger Side

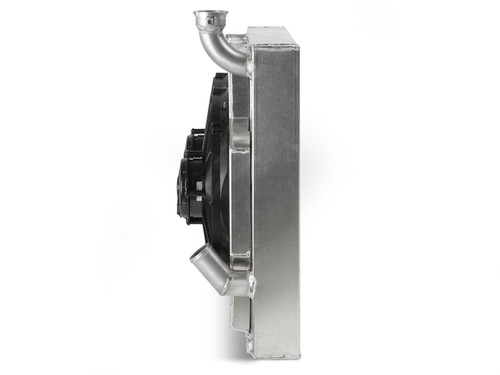

  • This model includes a high performance electric fan and shroud (as pictured).
  • 16" single electric fan can pull 1616cfm.
  • This model includes Auto Transmission Cooler (heat exchanger) in lower tank, 3/8" NPT.
  • Billet radiator cap neck
  • TIG Welded
  • MADE in USA!



NOTES:

  • Accepts all the factory Jeep radiator hoses.
  • Can still be used on manual transmission Jeeps.
  • Great for V-8 conversions up to 475HP too!
  • GM V8 guys please see GRCU-70172 for radiator with correct hose in and outlet positions.


Be sure to click on More Pictures to see larger more detailed images.
