MADE IN THE USA

TJ/LJ Bumper Plate for Swing Down Tire Carrier

$349.99
2 reviews Write a Review
P/N:
RTC-3220
Model:
Jeep TJ/LJ

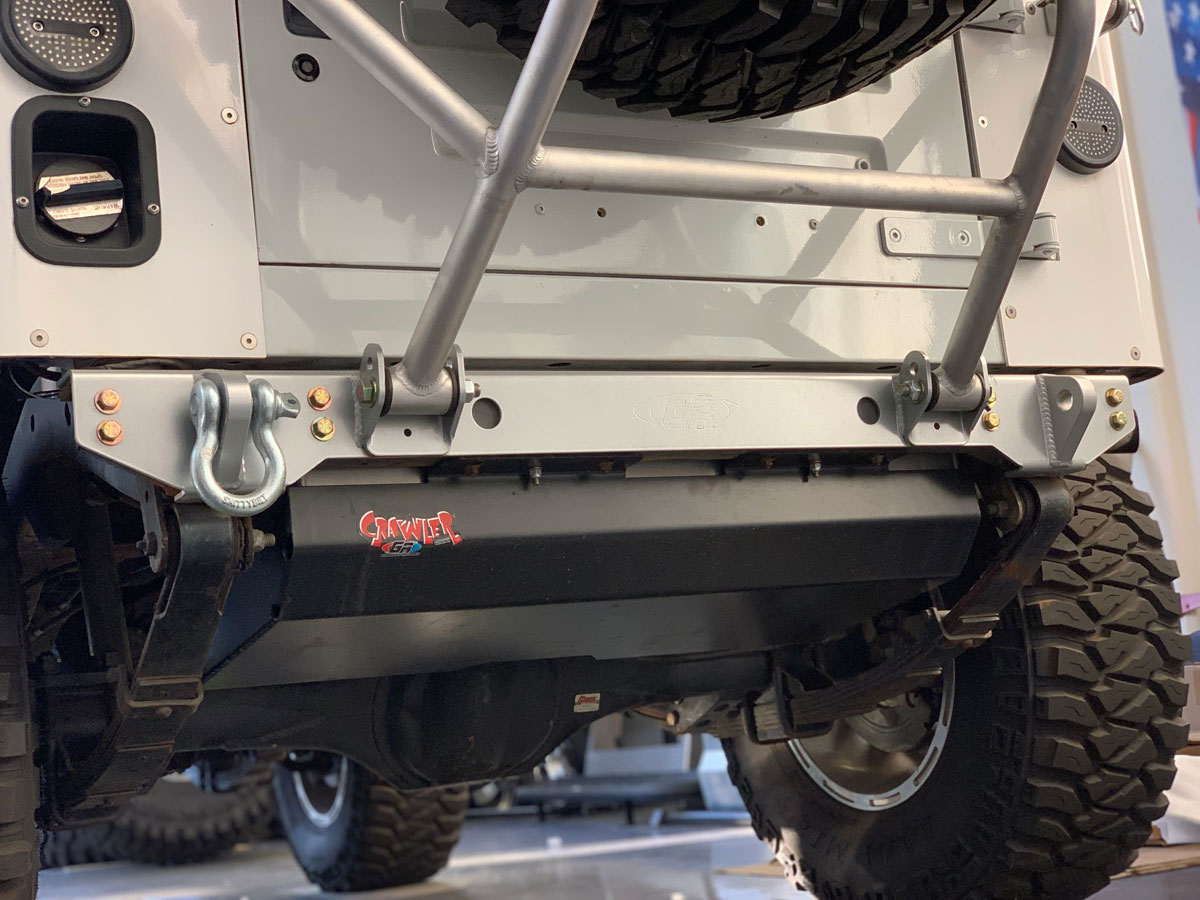

This is the Bumper Plate for the GenRight swing down rear tire carrier.

All the rear tire carrier brackets are pre-welded onto the 3/16" thick plate for the rear of a Jeep TJ & LJ.

It is designed to be used as a high clearance rear bumper and give your Jeep the optimal departure angle while re-enforcing the rear cross member.

FEATURES:

  • C channel design fits over rear cross member.
  • 3/16" thick Laser cut steel plate.
  • CNC formed into shape for a perfect fit.
  • 7/8" thick fully welded shackle mounts for 2 solid rear tow points.
  • Allows you to repair or replace damaged rear cross members & body mounts.
  • Allows you to beef-up rear frame section.
  • Designed to be used with the RTC-3200 or RTC-3240 Swing Down tire carriers.
  • Design provides better rear clearance than a rear bumper for a better departure angle.
  • Bolt-on design.
  • Includes Grade 8 mounting hardware.
  • Shipped to you un-painted.
  • Made in U.S.A.!

This Item INCLUDES:

  • (1) Full width laser cut and bent rear plate (as pictured).
  • (2) Fully welded shackle mounts (D-ring shackles sold separately REC-2102).
  • (1) Grade 8, 7/16-20 Hardware kit

IMPORTANT NOTES:

  • For proper mounting, it requires lower or removing the fuel tank to drill and access center bolts.
  • Holes in plate fit the Optional LED-1500P or brighter LED-1001-P back up lights.
  • We also offer an Optional Rear Frame to Bumper Tie-in kit for extra strength RBB-1100.
  • Installation requires, you remove the rear most body mounts and slip this plate under them.
  • For a CJ's, please see part number RTC-3120.
  • For a YJ's, please see part number RTC-3420.

2 Reviews

  • 5
    Rear Bumper

    Posted by Brian L on May 20th 2016

    Awesome way to increase your departure angle while increasing the strength of your rear crossmember.

  • 5
    Excellent rear bumper setup.

    Posted by Mike on May 15th 2016

    Easy installation and great departure angle. Strong recovery points with the ability to add a tire carrier. Fits snug against the frame and there is no tire clearance issues if your rear axle is stretched.
