This is a Manual Transmission Mount for the GenRight Elite Suspension System.
Fits all models Jeep Wrangler 2 door and 4 door JK 2007 - 2017).
The cross member (and transmission mount are) independent of your vehicle's belly skid plate (unlike stock). This makes for easier transmission and transfer case service to drop the belly skid and not have to support the entire driveline.

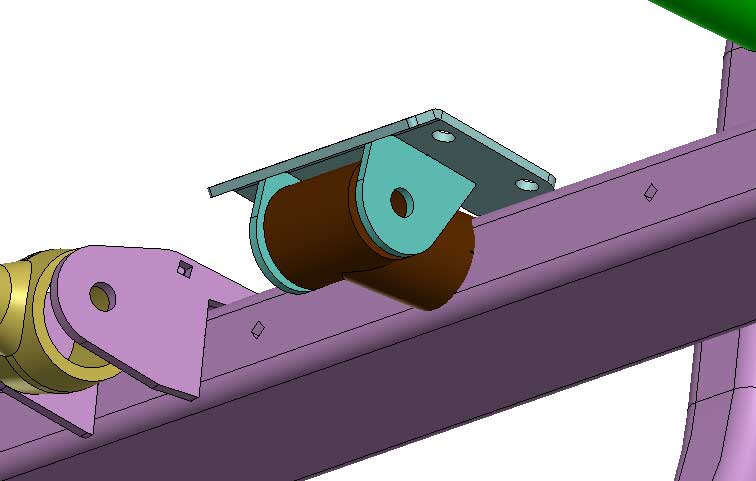

Its design allows for maximum clearance to the essentials (front driveshaft and exhaust) while still supporting the driveline with a durable tubular cross member that is urethane-mounted to the inside of the frame.
The cross member pieces are all laser-cut for precision and ready for you to be "tack" welded together into place, then removed for final welding and paint.
Kit Features:
- Urethane-isolated at the frame.
- Super low profile for maximum ground clearance.
- Pre-formed and side tubes with Urethane.
- Precision laser cut brackets are 1/4" thick and have multiple holes patterns in them for different transmission mounts.
- Includes Grade 8 mounting hardware.
- Allows the belly skid plate to be removed without unobstructed access to the transmission and transfer case for service.
- Mount and hardware, as pictured.
- 100% Made in U.S.A.
Important Notes:
- Designed to work with factory Jeep 6 speed manual transmission and the GenRight Elite Suspension system with flat belly skid plate.
- Only sold as a kit.
- This kit requires welding tabs onto the inside of the frame for mounting and to lock the tubes into place.
- We recommend heat wrapping the exhaust to keep urethane bushings from getting damaged by extreme exhaust temps.
- Replacement urethane bushings are available.
See additional pictures for more detail.
