Rear Upper Control Arm Mount Currie RockJock (Axle Side)

This is GenRight's NEW low profile Upper Control Arm Mount for the Currie Rock Jock 60 rear axles.

Designed to fit the factory Currie bridge, it takes all the guess work out of how the upper control arms should be mounted!

If you are Triangulating (or linking) the suspension on your Jeep, you will need a "Bridge" (Truss) above the differential housing on the rear axle to mount the upper control arms.

We have figured out all the angles for proper geometry (weight transfer and minimal anti-squat) to make your rig a top notch crawler with awesome articulation.

Features Include:

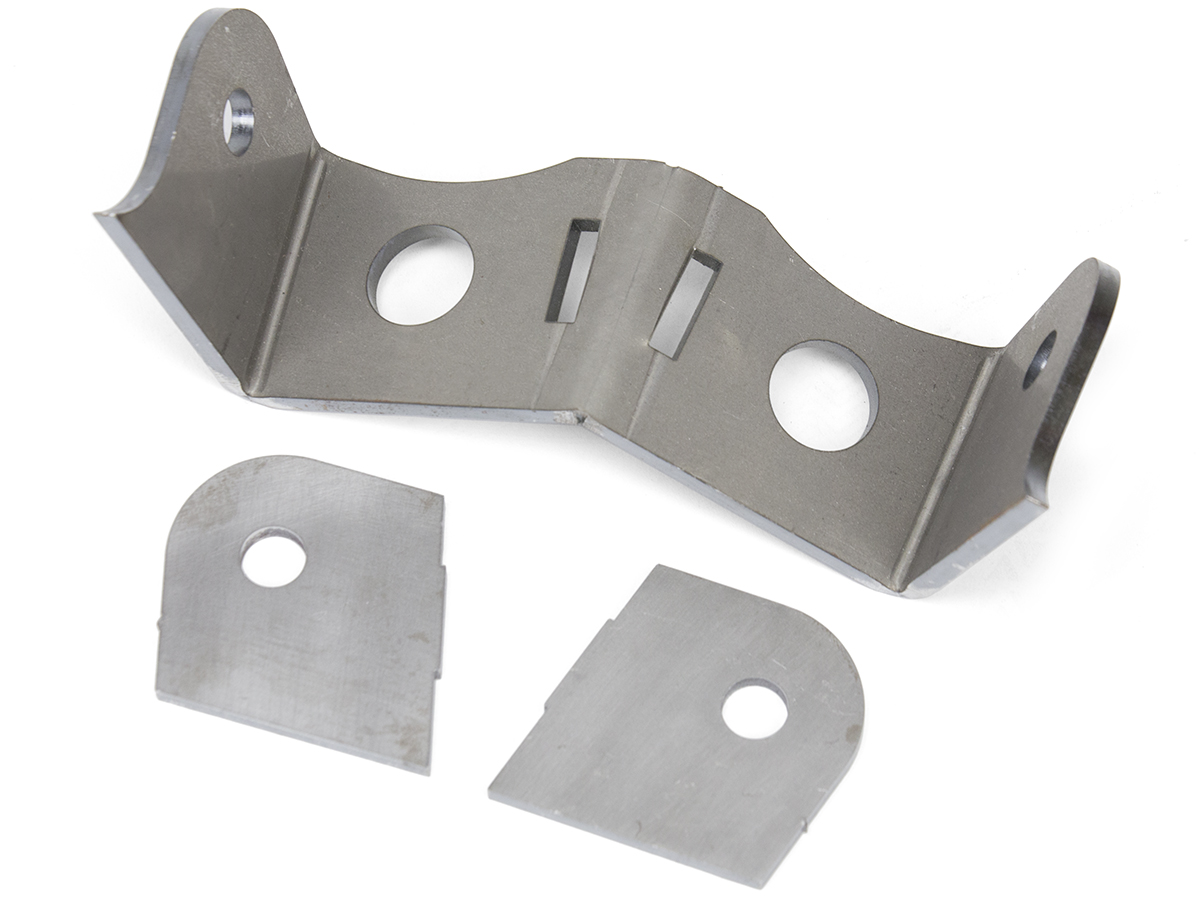

• Lased Cut parts for easy welding
• Puzzled pieces are un-welded (needs to be welded on your axle).
• Design puts the joints in the ideal plane above axle center line.
• Heavy Duty 1/4" thick laser cut and CNC bent material, boxed design.
• This part is designed to work with Triangulated 4 link suspensions!
• Joint mount is made 2-5/8" wide and for a 9/16" bolt.

Notes:

1) This kit requires welding to properly install it on your axle bridge.
2) This kit does not include the Currie Rock Jock axle bridge.

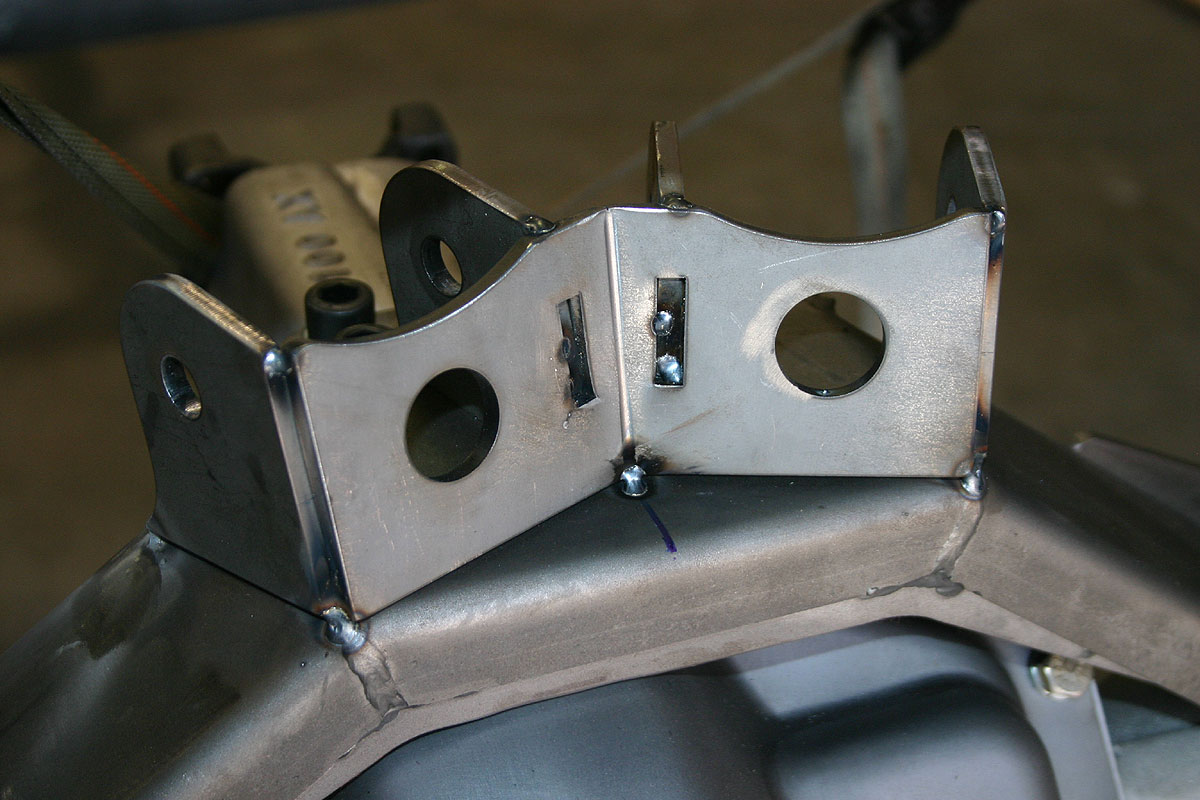

3) For maximum performance and articulation you need to tack the bridge in place and cycle the suspension.
