Universal Front Bump Stop Pad Kit

1 review Write a Review

SUP-1001 GenRight's front axle bump stop pad kit


This is the GenRight FRONT bump stop "pad" kit.

It is a simple way to get bump stops on the front of your coil over shock Jeep!

Since space is limited on the front axle, we designed a combo lower control arm mount with bump stop pad kit.

Designed to work with GenRight's Urethane bump stops OR King/Fox 2" Air bump stops.

This allows you to "Upgrade" down the road to true air bumps when you can afford it!

This is the same kit we use on every GenRight Jeep TJ, LJ, YJ and CJ build!


  • Front axle side bump stop pads with build in lower control arm mounts.

  • Ideal for limiting up travel (preventing damage from bottoming out).

  • Affordable and complete kit.

  • Proven heavy duty construction.

  • Laser cut from 1/4" thick cold rolled steel, the pieces key together for easy assembly.

  • (2) Zero degree, lower control arm mounts, (2-5/8" wide for a 9/16" bolt).

  • Built in bump stop pads on top.

  • (2) Sets of gussets for mounting the frame side bump can (pieces shaped like a 1).

  • Sold as a pair.


  • Frame side Bump Stops AIR (KAB-2002) or Urethane (SUP-1020) sold Separately.

  • Requires cutting (to remove old brackets) and welding to install this product.

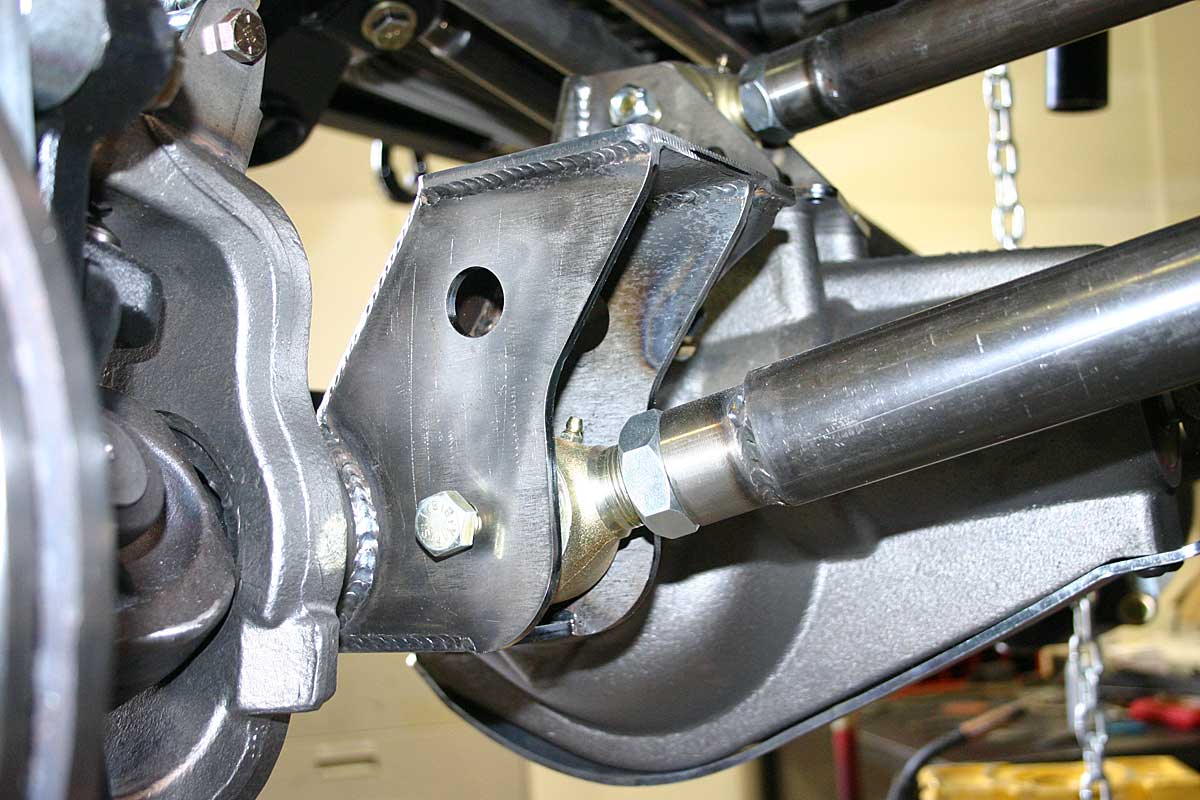

  • Sold in pieces, because it must be welded onto the axle in stages where you would otherwise not be able to reach with a welder.

  • This product should be cycled before use to confirm the bump stop is mounted in the correct position for your vehicle build to prevent unexpected damage out on the trail.

  • We offer a matching bump stop kit for the rear (SUP-1002).

  • Air bumps usually requires a Nitrogen charge of 75 to 120 lbs after installation.

  • The front WILL work with the FOX type "pinch" air bumps cans.

Be sure to click on the Pictures to see larger more detailed images of this product.

1 Review

  • 5
    The only option to go with!

    Posted by Jeff on Jan 20th 2020

    Awesome package. Control arm mounts and bump stop pads in one. Makes figuring everything out for the front end super simple.
