This is the GenRight Rear Sway Bar kit, designed for use with our GenRight "Elite" JK suspension for the 4 door Jeep Wrangler JK.
It is 30% stiffer than other brand Anti-Rock type sway bars (Rock Jock, Teraflex, etc.) on the market and will add stability to your modified long travel coil over suspended vehicle.
The large 1-1/4" diameter sway bar has 48 splines and proven long term durability off-road.
These sway bars are custom made in the USA for GenRight to fit the width of a Jeep JK's frame and survive being flexed with up to 14" travel shocks (when properly mounted).
This is the type of sway bar that you leave connected all the time, on-road AND off-road (no need to get out and disconnect it for off roading).
This is the same sway bar we run on our JK's Wolverine and Sonic (with Stage 1).

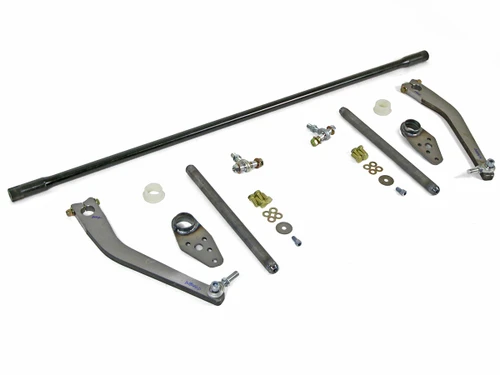

Our kit includes:
- Solid Arms will hold up to off-road abuse.
- Huge 1-1/4" diameter sway bar.
- 48 Splines (bar and arms).
- CNC machined delrin sway bar bushings (are quiet).
- Adjustable heims at both ends of the links.
- Bolt on tabs to mount the bar on frame (as shown in pictures).
- Double shear tabs to weld on the axle.
- Includes all the proper mounting hardware.
- Basic instructions and diagrams.
- Made in USA!
NOTES:
- Fits ALL Stages of the JK Elite kit.
- This is a “Builders Kit”. Builders Kit parts are because there are too many product combinations and variables for us to advise you sight unseen.
- You cut & weld the "link" tubes to the proper length (to match your vehicles lift) OR Order our optional CNC machined aluminum links which are proper length.
- This kit also requires some minor drilling to properly mount it.
- Will on a factory width axle, in used in our Stage 1 Elite kit (if you move the rear most mounted muffler).
- The rear brake line tabs on the outside of the frame need to be moved inboard (when used standard style coil springs).
- Works great with coil over shock conversions too!
- This kit is installed behind the rear axle (above frame, behind our rear mounted gas tank).
- If you need instructions or tech help, please buy & install the kit as we designed it.
- 2 door JK customers, please use SWB-8001.
Be sure to click on the Pictures to see larger more detailed images.
1 Review
-
JK no-sway with the Genright kit
It's a builder kit that allows you to tailor it to your specific Jeep JK/U. I recently converted to double triangulated 4-link and 3-link front suspension and even with good suspension geometry, had too much body roll because I like a soft suspension and usually run no sway bars. I installed this kit (no front sway bar) and the difference is dramatic. I flexed the Jeep using a fork lift and the travel is unchanged. Very happy with this kit.
