This is the Rock or Road tire inflation/deflation system by the Made for Rocks company.
This system inflates and/or deflates all 4 tires simultaneously to the pressure of your choice.
It is compact and mounts on your Jeep, under the two front seats.
Built for Jeep Wrangler JL, JLU, & Gladiator (JT) in all models (Rubicon, Sahara, Sport, etc.).
The air compressor is not included in this kit.
We recommend the ARB dual compressor and under passenger side seat mount). But can be used with a York or other onboard air compressors too.
This is the same system Tony featured on his June 2022 Tech Talk and uses on his Aftershock Jeep JLU with 40" tires.
Kit Includes:
- Driver side seat bracket with controller, air quick disconnect air fitting & mode selector switch.
- Driver side dual quick connect (Schrader type) hoses for each wheel (in bag).
- Passenger side seat bracket with air quick disconnect air fitting.
- Passenger side dual quick connect (Schrader) hoses for each wheel (in bag).
- Electronic control box is both Manual and Bluetooth connected (mounts under driver seat).
- Smart phone app for operation and settings.
- Made to "plug n play" into ARB dual compressor wire harness.
- Includes High temperature D.O.T. rated air tubing with push lock fittings.
- Made in U.S.A.
- Patent pending.
Notes:
- Requires a smart phone with app to initially set up the system for tire size and preferred air up and air down pressures. Then it can be operated to air up or down from a simple toggle switch on side of drivers seat.
- Installation takes about 3 hours (including the air compressor) and is easiest if both front seats are removed.
- Air compressor is not included and can be purchased separately. This system can be used with any 100% "duty cycle" high volume 12V air compressor; ARB Dual, Viair 450p, Smittybilt or even the York (engine driven) onboard air compressors too.
- ARB dual compressor requires the ARB under seat mount # 3550220.
- A 60lb pressure regulator is built into the system so tires are not over inflated by accident.
- Kits are also available for the Jeep JK and JKU.

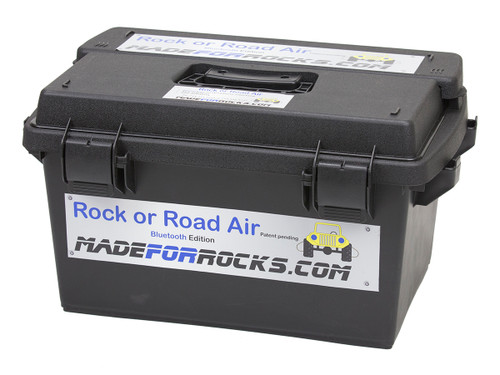

- A portable universal air system is also available.
