We incorporated many of the new features in our JL cage and revised our original JK cage including:
- Better visibility through the windshield.
- More interior room for passengers.

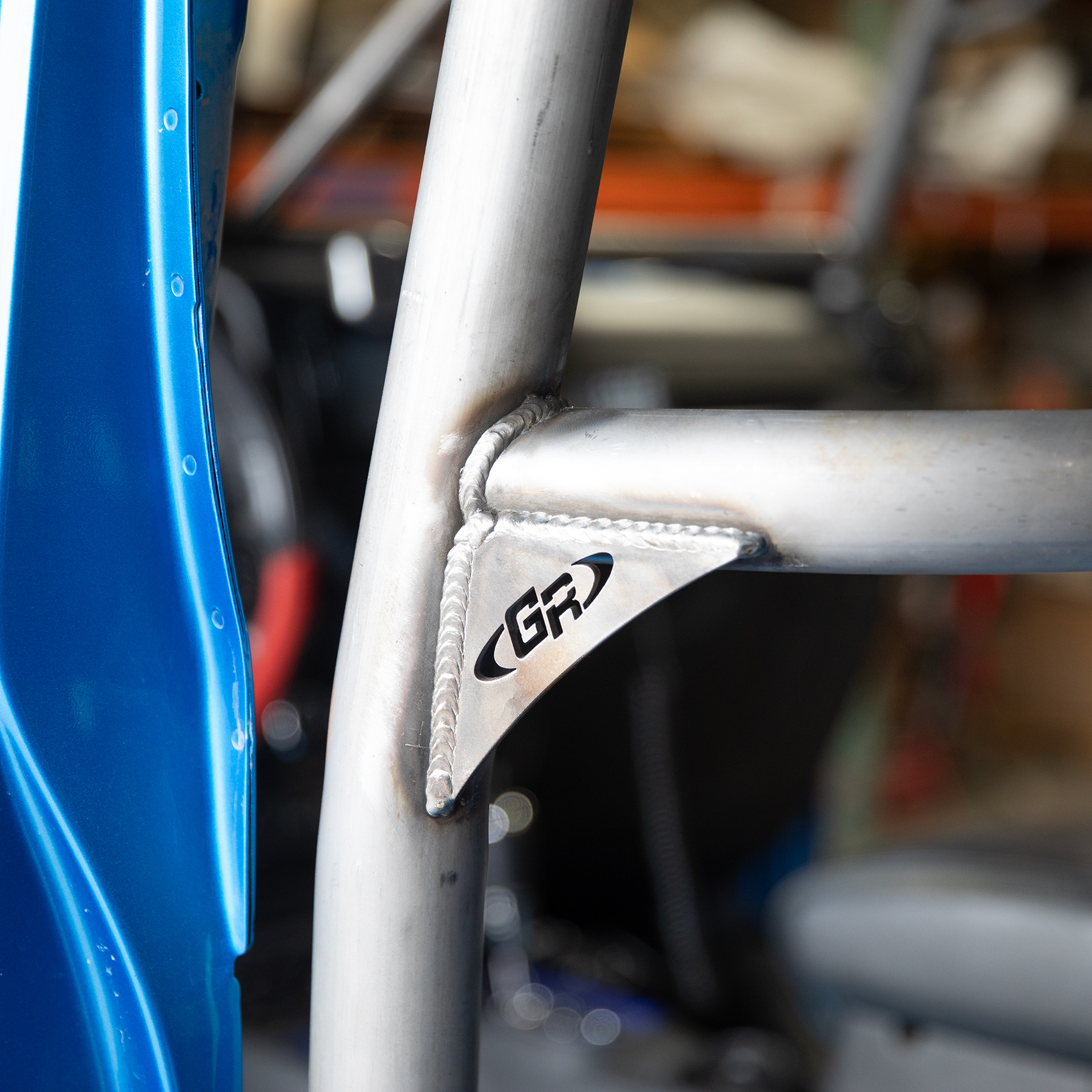

- More gussets.

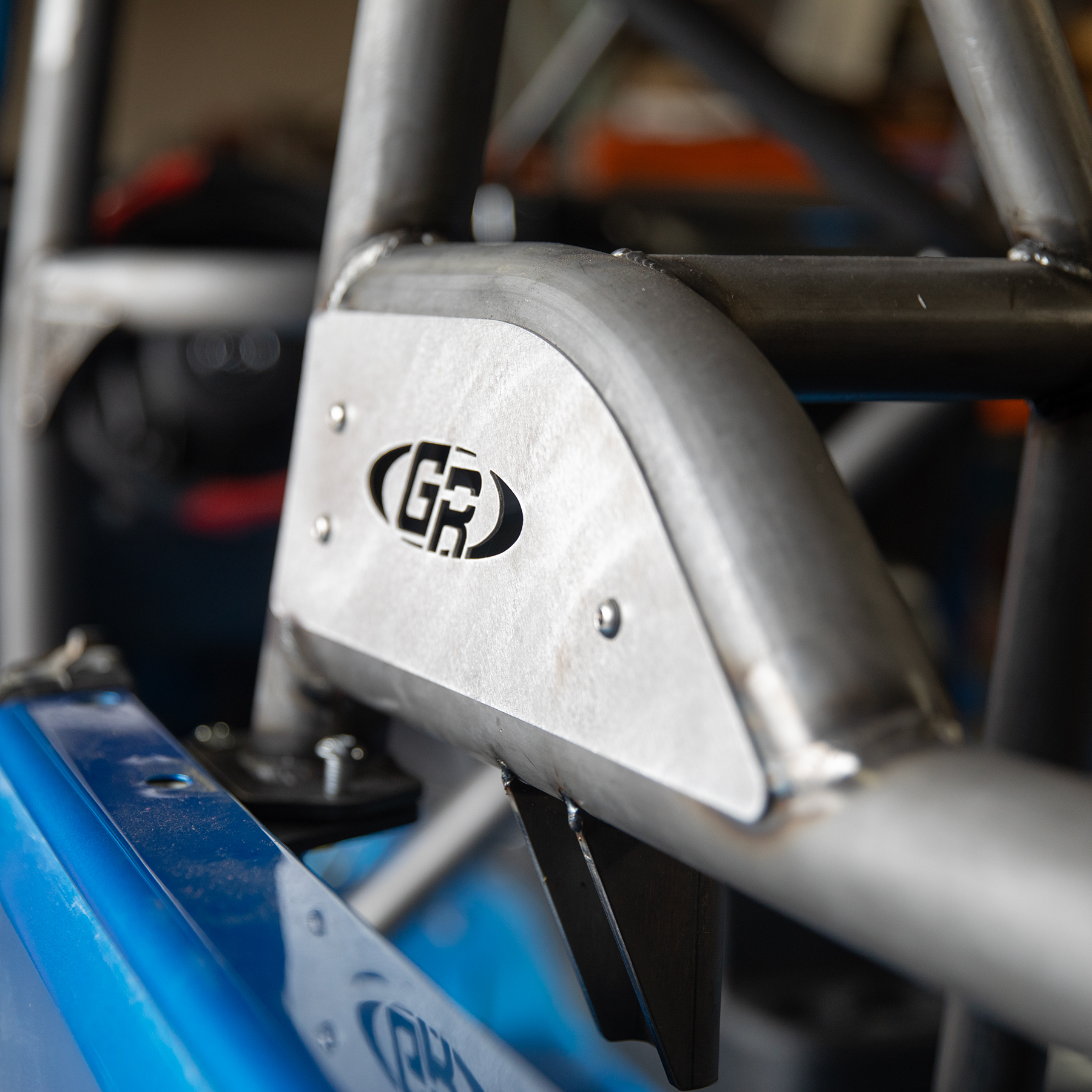

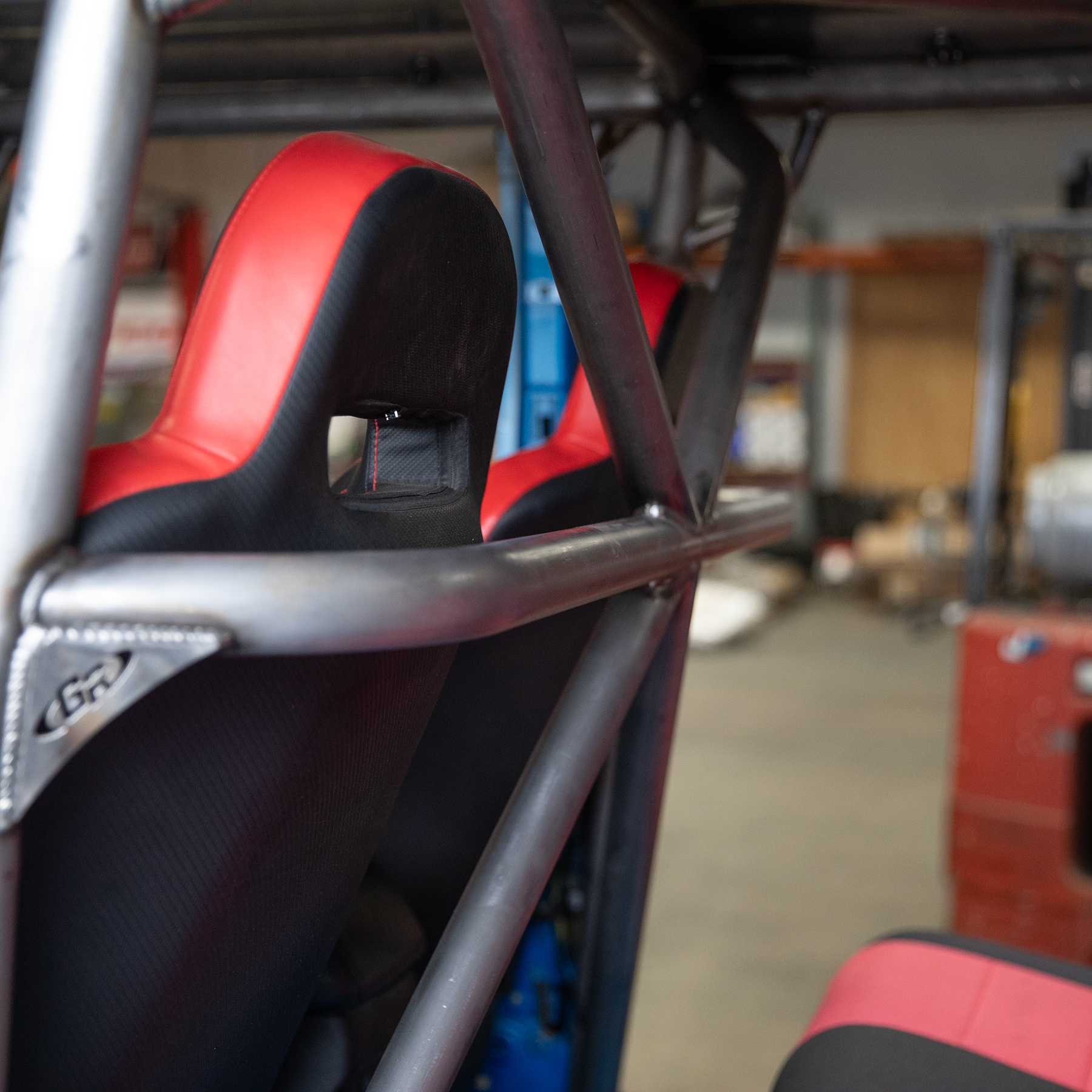

- Raised harness bars and GR side plates.

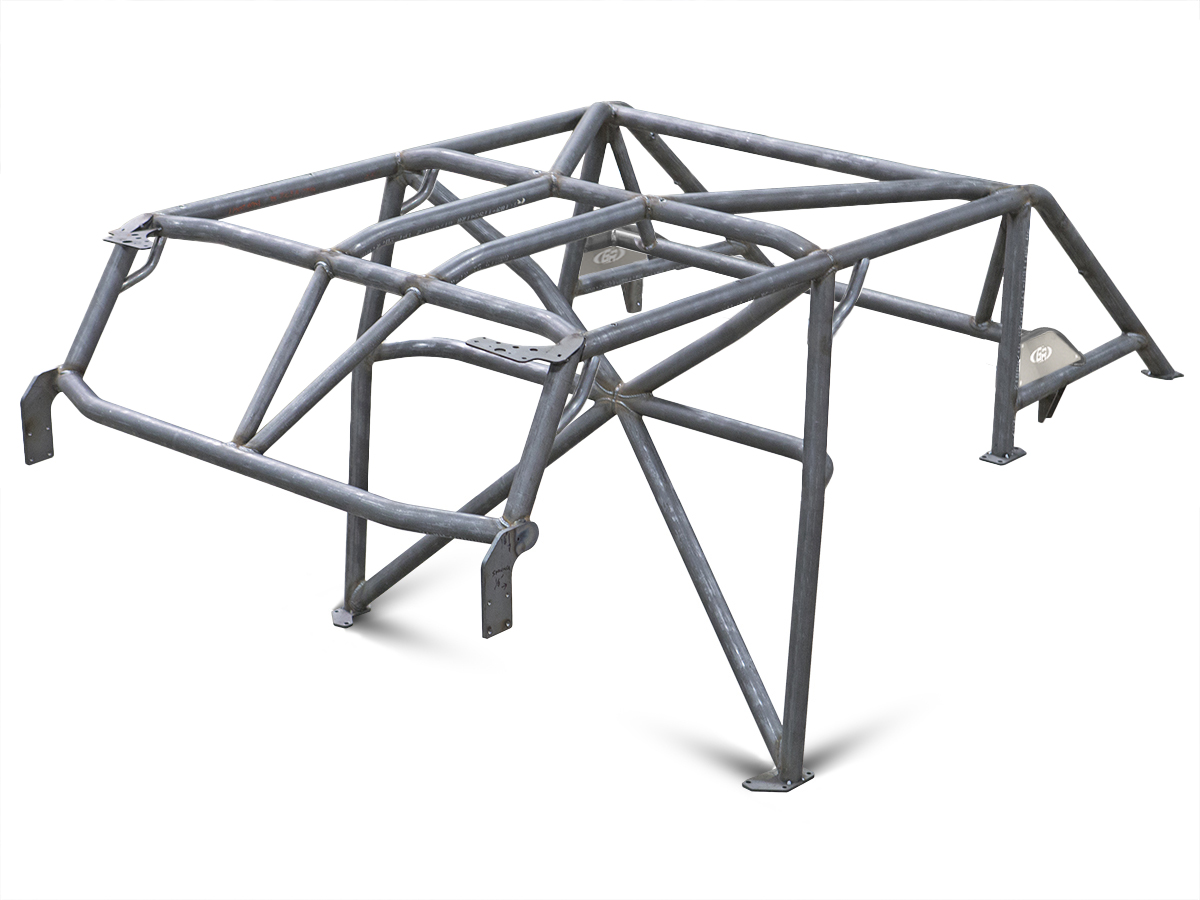

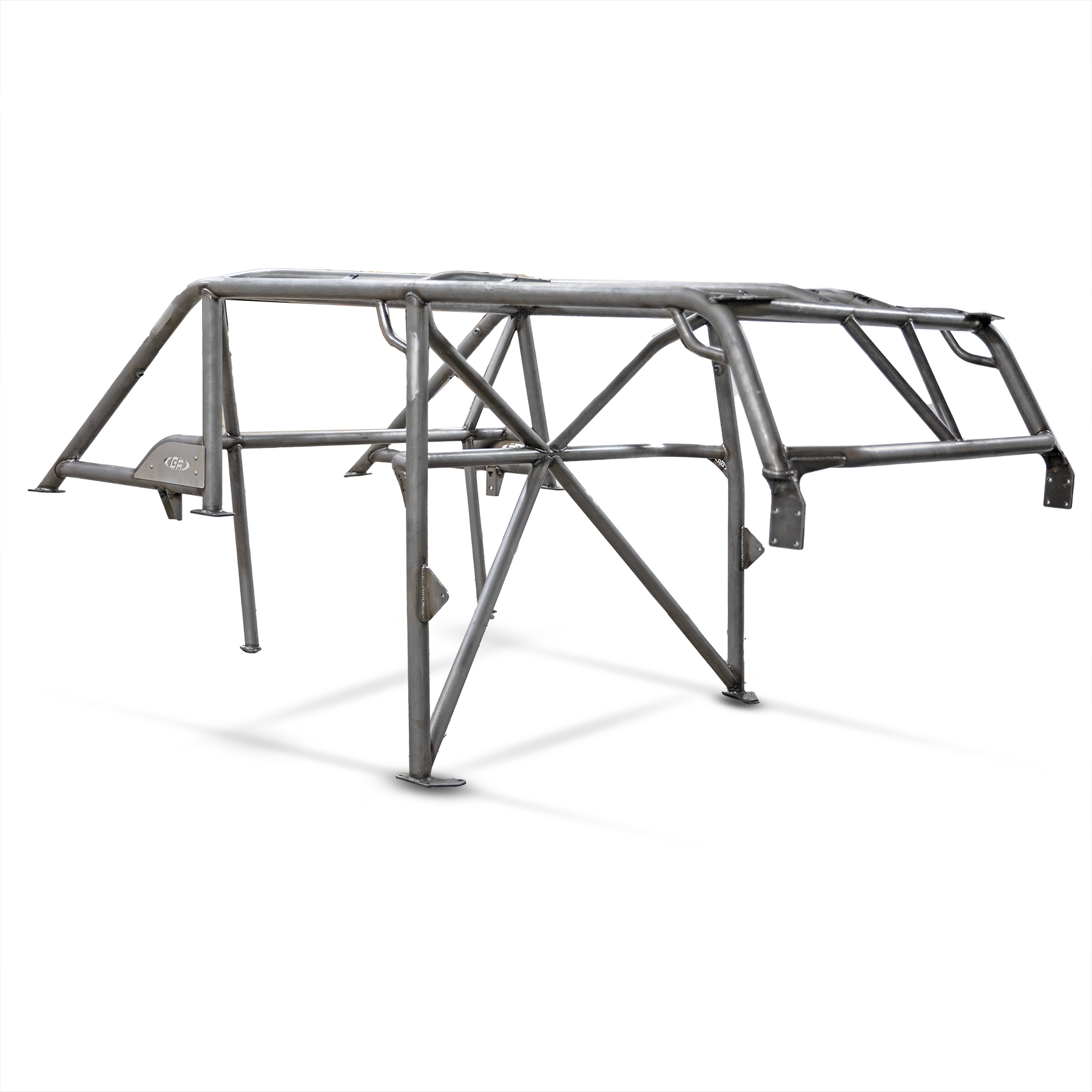

Of course, we use the latest Laser Cutting and CNC Tube Bending technology to build this cage from heavy duty 2" diameter DOM tubing and features solid 8-point mounting for maximum protection (unlike any other cage on the market). Why 2" over 1-3/4" tubing? 2" is twice as strong as 1-3/4".
This is the best most protective, complete replacement, weld-in (not bolt in) cage available making it the safest cage on the market for a Jeep Wrangler JKU.

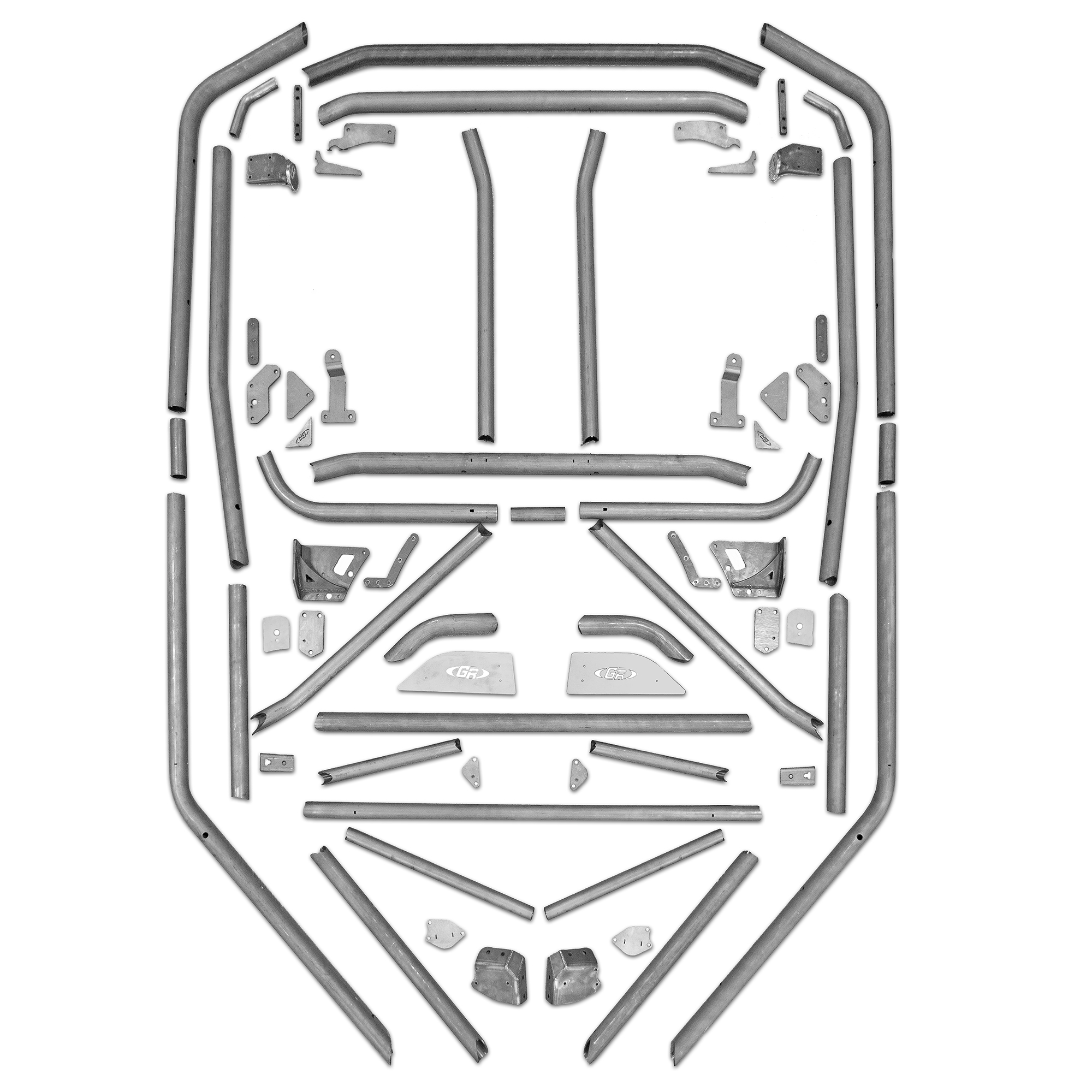

All the tubes are cut to length and notched to fit together like a "puzzle." You just need a (MIG or TIG) welder to put it all together.
Features:
- Thick wall 2" diameter x .120" wall D.O.M. (Drawn Over Mandrel) seamless tubing on all outside tubes for maximum protection.
- 1-3/4 x .120 wall DOM tubes on all interior tubes for more interior space.
- Laser Cut and notched CNC bent tubes, with additional keying for fool-proof assembly and a precision fit.

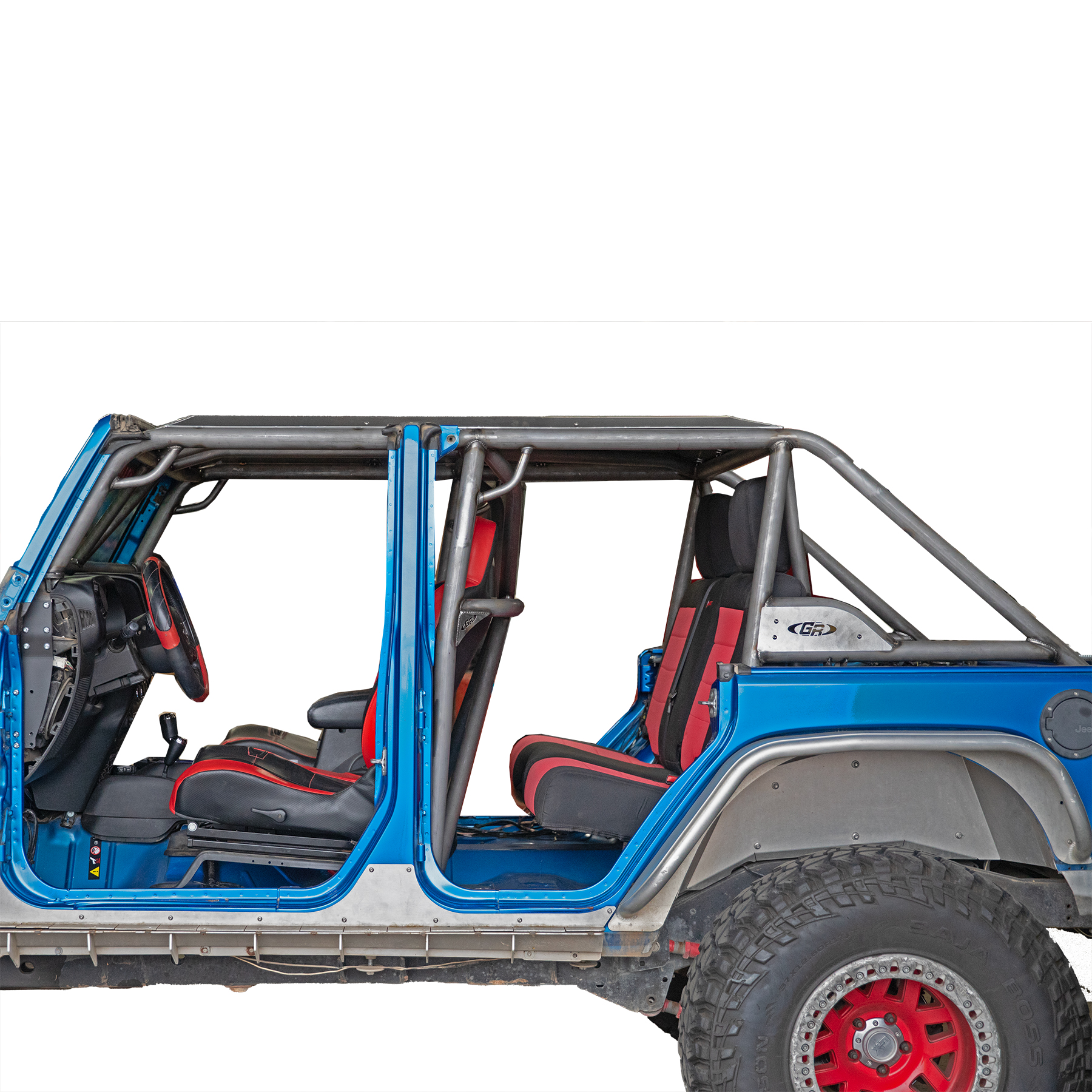

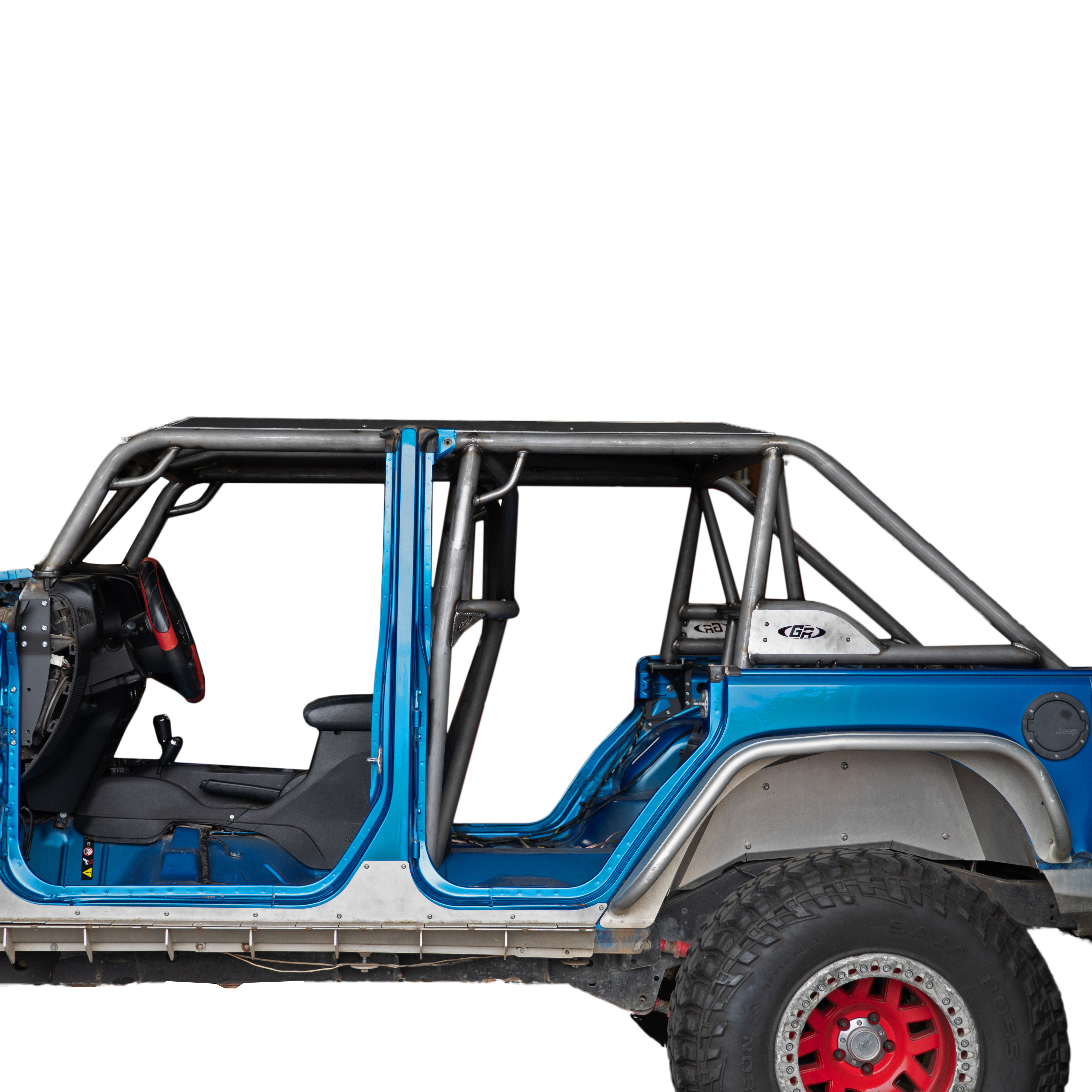

- Solid 8-point mounting for maximum safety by adding an additional pillar behind rear seats to protect passengers (40 bolts hold cage to Jeep tub).

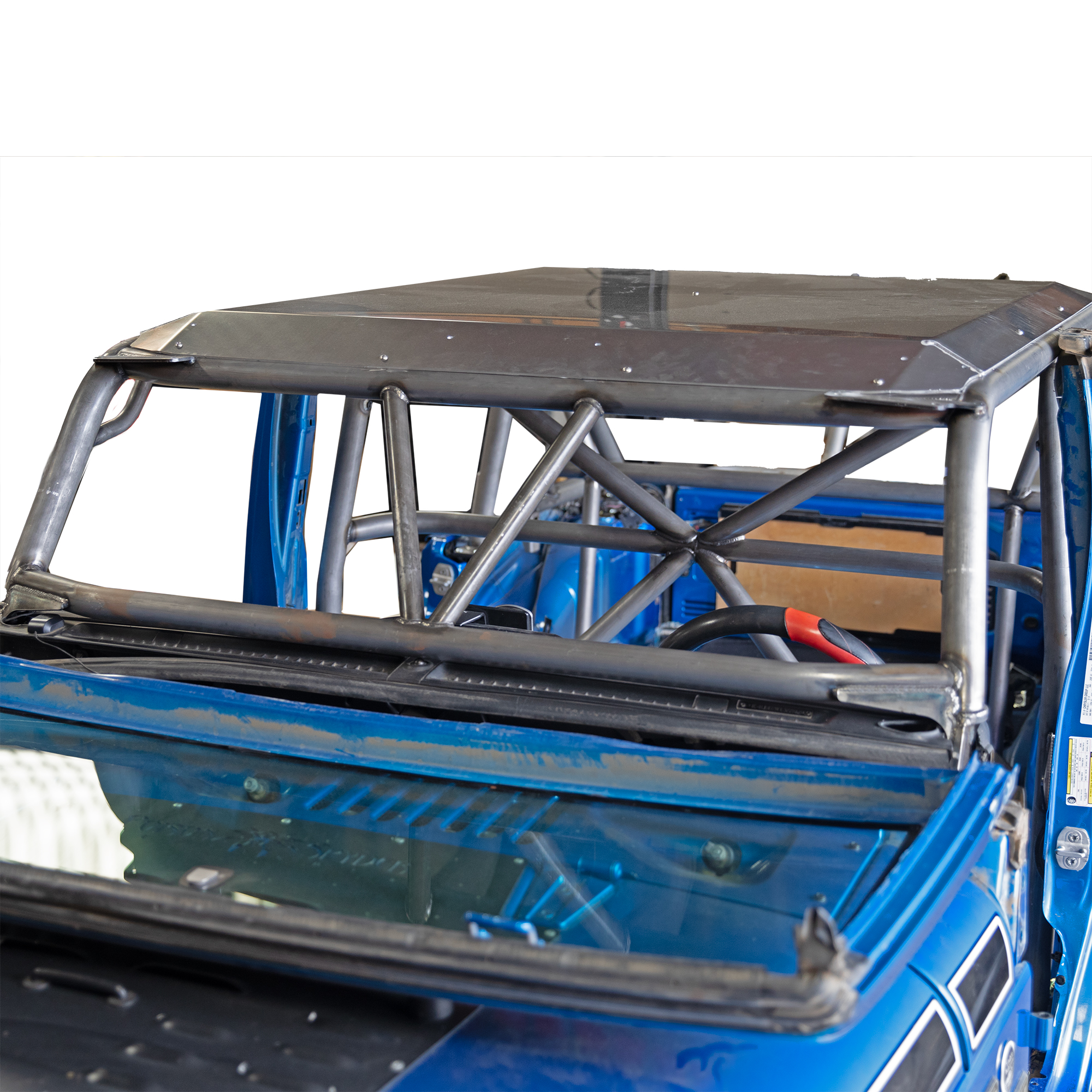

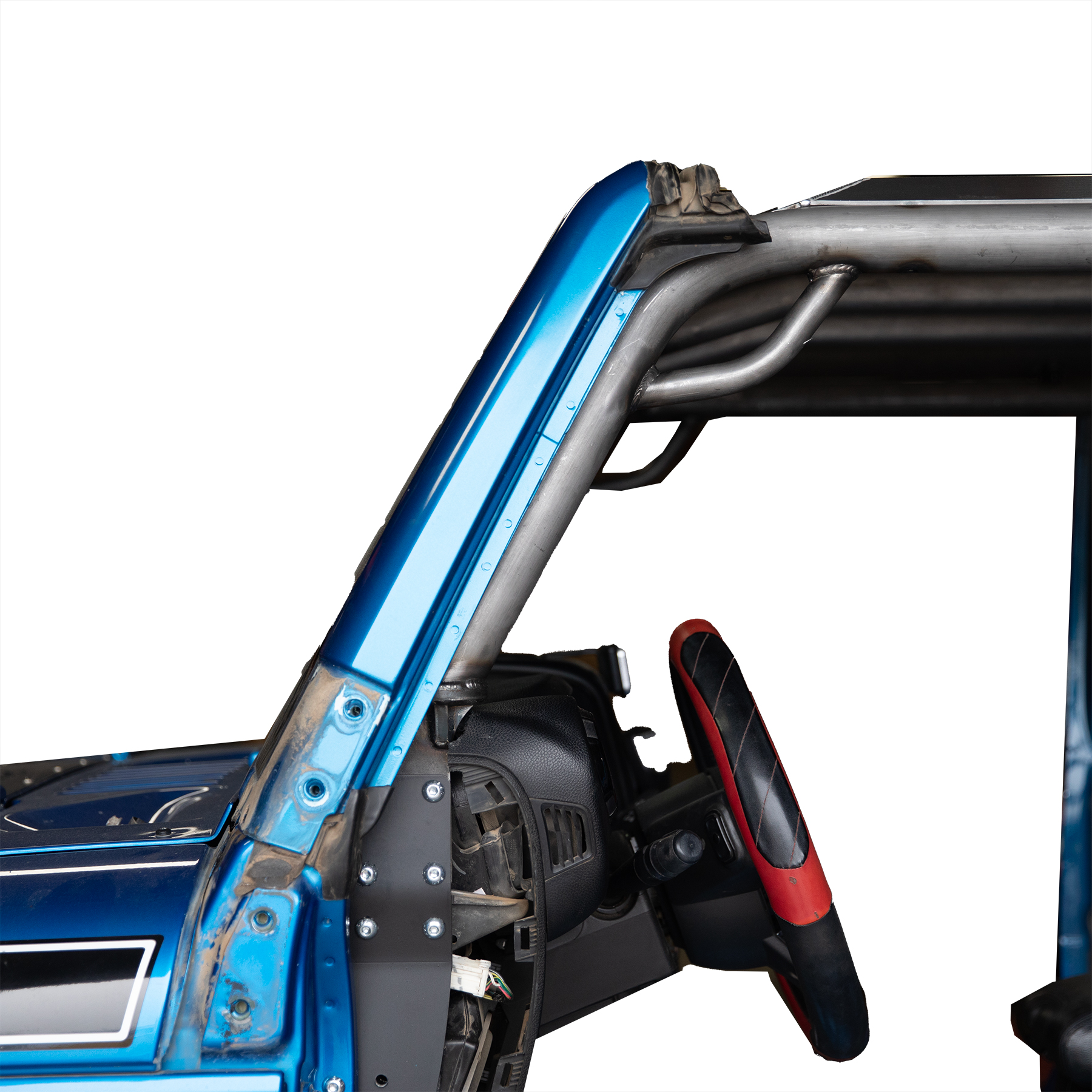

- Designed for maximum visibility with a new ultra low profile dash bar.
- Only minor trimming of plastic dash end caps is needed and is not visible when cage is installed.
- Front doors do not rub the sides of the dash after cage is installed (like other cage kits).
- Fits under both, factory hard and soft tops.
- Can be used with factory metal (full or half) doors or soft doors.
- Pre-welded heavy duty cage to tub mounting brackets are laser cut and formed.
- Each tube has the part number laser etched into it, so there are no mistakes.
- 2 grab handles are included for the front (grab handles for the rear passengers are optional).
- Includes mounting brackets to retain all the factory seat belts.
- Includes all necessary mounting hardware (Grade 8)
- Includes very detailed step by step installation instructions (can be installed in 2 to 3 days).
- Made in U.S.A.
Optional Accessories:
- Jeep JK Dome Light Housing (For GenRight Cages).
- Jeep JK Soft Top Adapter for GenRight Roll Cage (4 Dr.)
- Jeep JK Detachable B-Pillar Kit
- JK (4 Door) Aluminum Roof for GenRight Roll Cage
Important Notes:

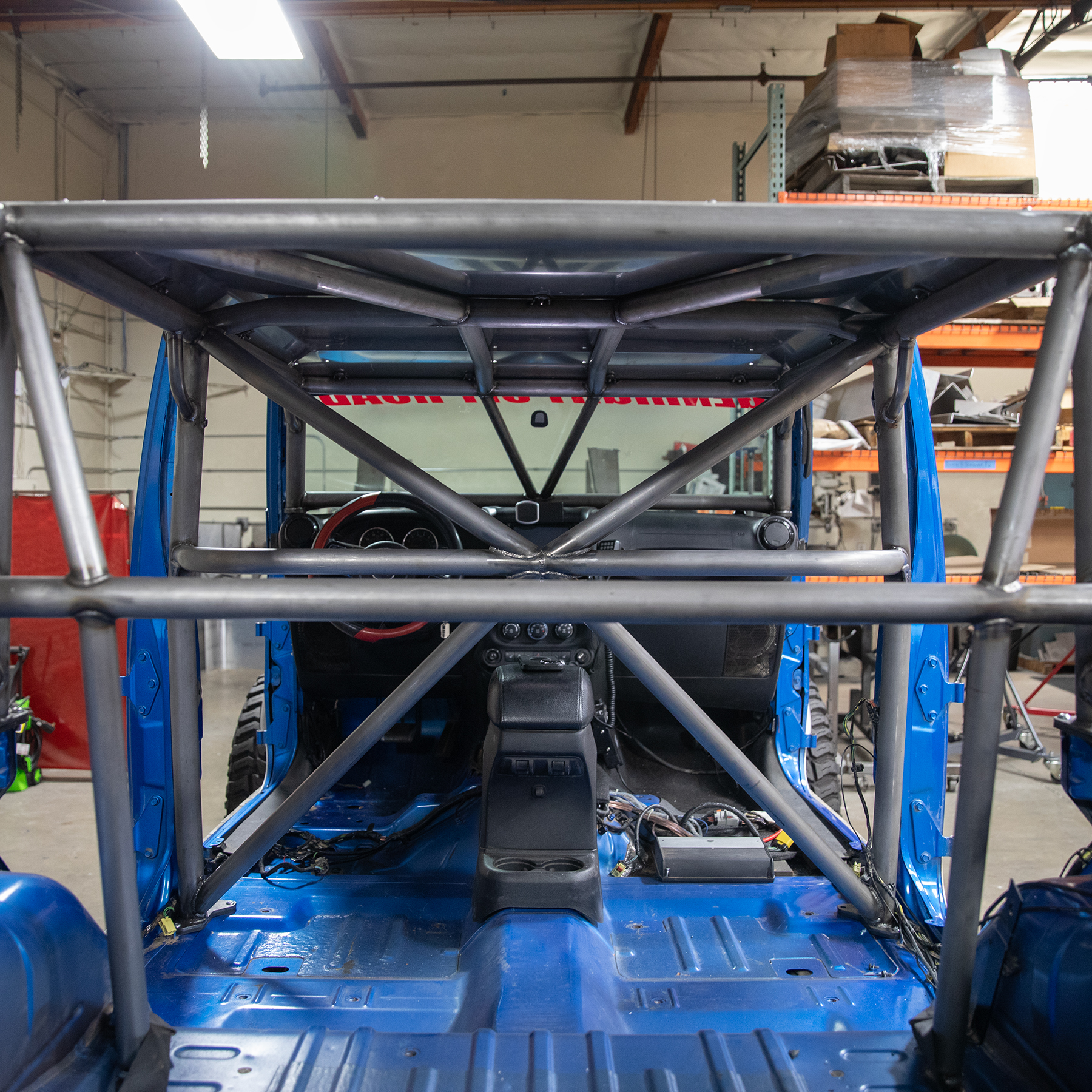

- This kit was designed to be used with all the options (X-bar and V-bar). We strongly urge you to install these bars for the cage for the best protection.
- This kit is sold un-welded, requiring welding by the end user in the vehicle. It is best to build the cage in the Jeep that it will be used in.
- Both factory seat belts and 5-point harnesses can be mounted and used with this cage.
- This kit will require relocation of tweeters (that stick up) on dash to accommodate new ultra low dash bar.
- This kit requires complete removal of the stock roll bar (and most of the interior for install).
- After welding the cage, the cage can be removed for hard to reach weld spots and powder coating.
- It is possible to re-fit most of the stock interior plastic (including the sound bar), but it will take some work to trim the plastic nicely.
- Some trimming of the rear door panel (on factory hard doors) will be necessary where the door panel meets the B-pillar tubes.
- Adding a roll cage to a Jeep is not a guarantee of safety. However, this is a substantial upgrade from the factory cage.
- We also offer a A-pillar upgrade (GRC-8005) to be used with our aluminum Dash upgrade (DSH-8030) and cage to frame tie in's for racing.
- We offer an adapter bracket kit to run a Bestop TrekTop (GRC-8065) too.
- If there is any chance you want an aluminum roof, it is MUCH more economical for shipping to order it with the cage.
- NEVER EVER drill holes into the cage tubes! Drilled holes of any size compromise the roll cages integrity and strength!
- Any & All holes must have a bung welded into them or welded closed!
