JL/JT Tow Bar Mounting Kit (plastic bumper), Rock Jock

RockJock Plastic Bumper Tow Bar Mounting Kit for JL Wrangler, JL Unlimited and/or JT Gladiator vehicles.

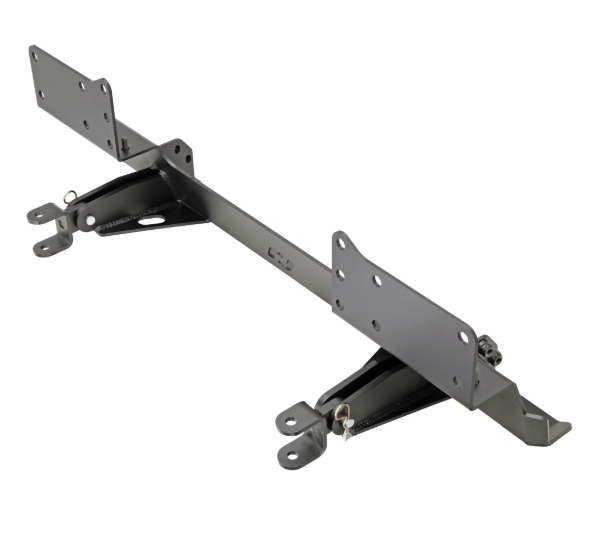

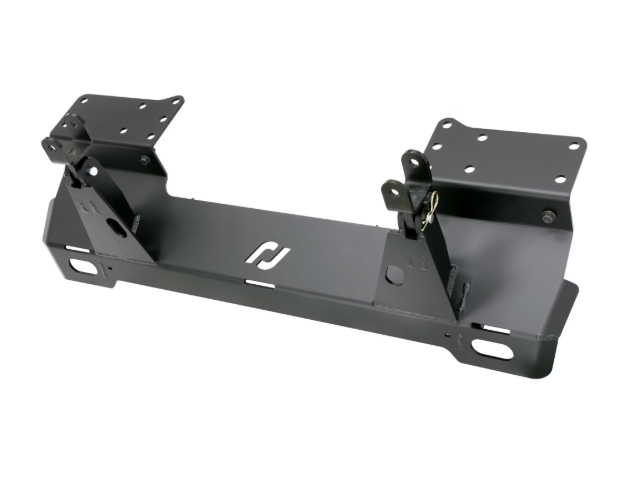

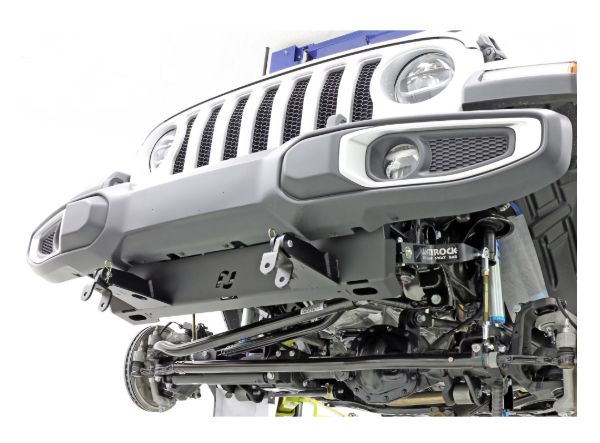

It provides you with a heavy duty, easy to install tow bar mounting plate that simply replaces the stock under-bumper plastic chin panel on your vehicle. Our new plate bolts directly to the front of and the bottom of the frame for maximum rigidity

The RockJock plate is fabricated from laser cut and machined steel components and powder coated semi-gloss black for maximum durability. The plate’s slim design retains maximum clearance and approach angle.

Kit Fits:

• JL Wrangler Unlimited (4-door) – w/ Factory Plastic Bumper Option
• JL Wrangler (2-door) – w/ Factory Plastic Bumper Option
• JT Gladiator – w/ Factory Plastic Bumper Option

Kit Includes:

• Steel Tow Bar Mounting Plate
• Universal Tow Bar End Fork Brackets (CE-9033B)
• All Required Hardware and step-by-step instructions

Tow Bar Compatibility:

• Curt (RJ-19745 and RJ-70001)
• Blue Ox (most styles)
• Demco (most styles)
• Roadmaster (most styles)

Notes:

• This kit is only applicable to vehicles with the factory installed plastic bumper.
• For factory installed steel bumper applications see our CE-9033JLS Kit.
• Plate is finished in semi-gloss black powder coat.
• This kit is not for use with aftermarket bumpers.
• If you are using an aftermarket winch plate, many winch plates interfere with the mounting of this tow kit, causing compatibility issues. Review this kit’s instruction manual for clarity before purchasing this kit or a winch plate.

Instruction Manual:

• CE-9033JLP Kit

Parts List:

• Tow Bar Mounting Plate:  CE-9033JLMPP
• Universal Tow Bar End Fork Bracket:  CE-9033B
• 1/2 in. x 1 3/4 in. Long Clevis Pin:  CE-9033CP2
• Hair Pin:  CE-9033H
• 3/8 in.-16 x 1 in. Long Flanged Hex Bolt:  CE-92316A624
• Nut Plate (3/8 in.-16 x 2 nuts):  CE-9033JLMP-NP
