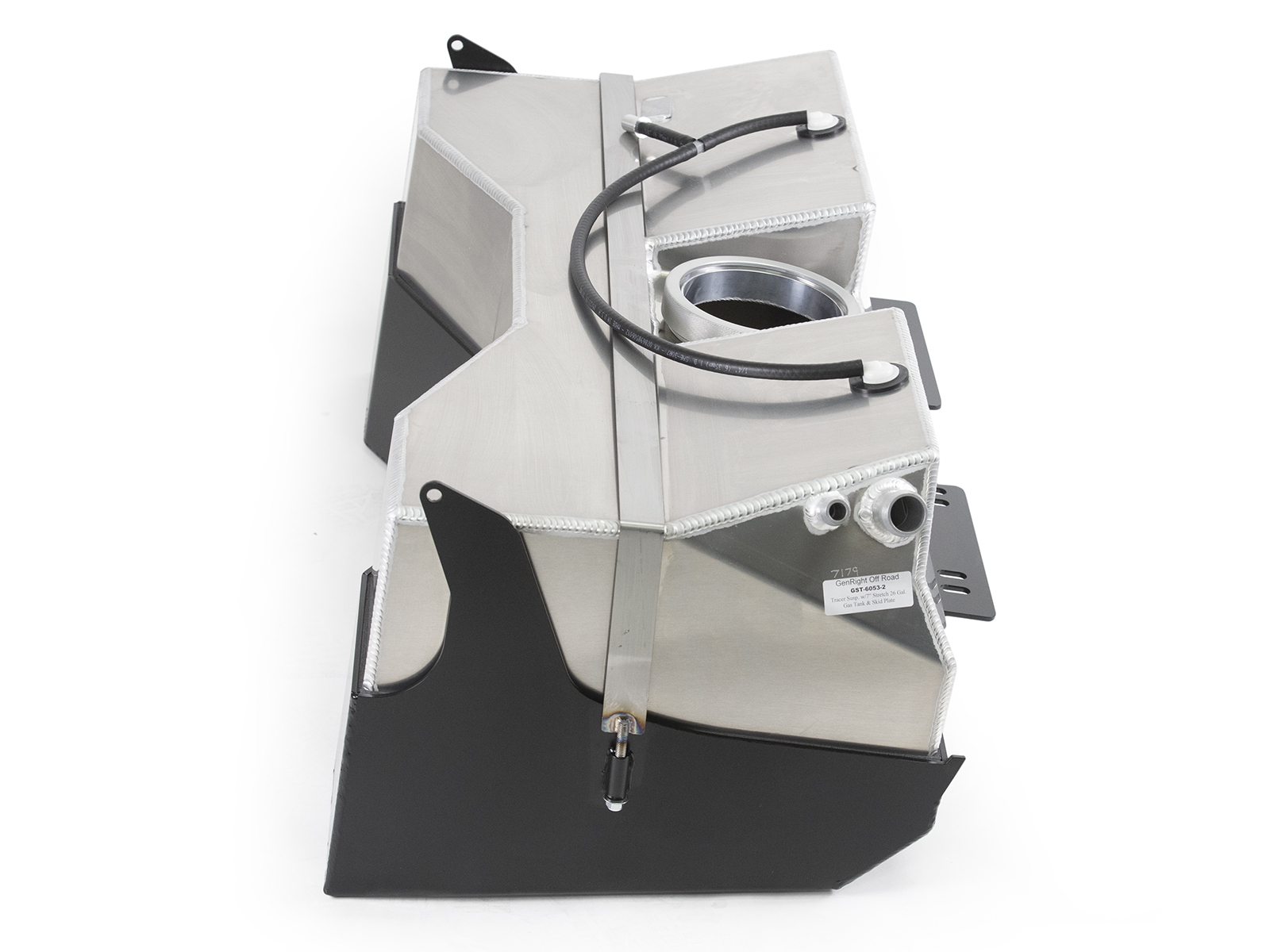

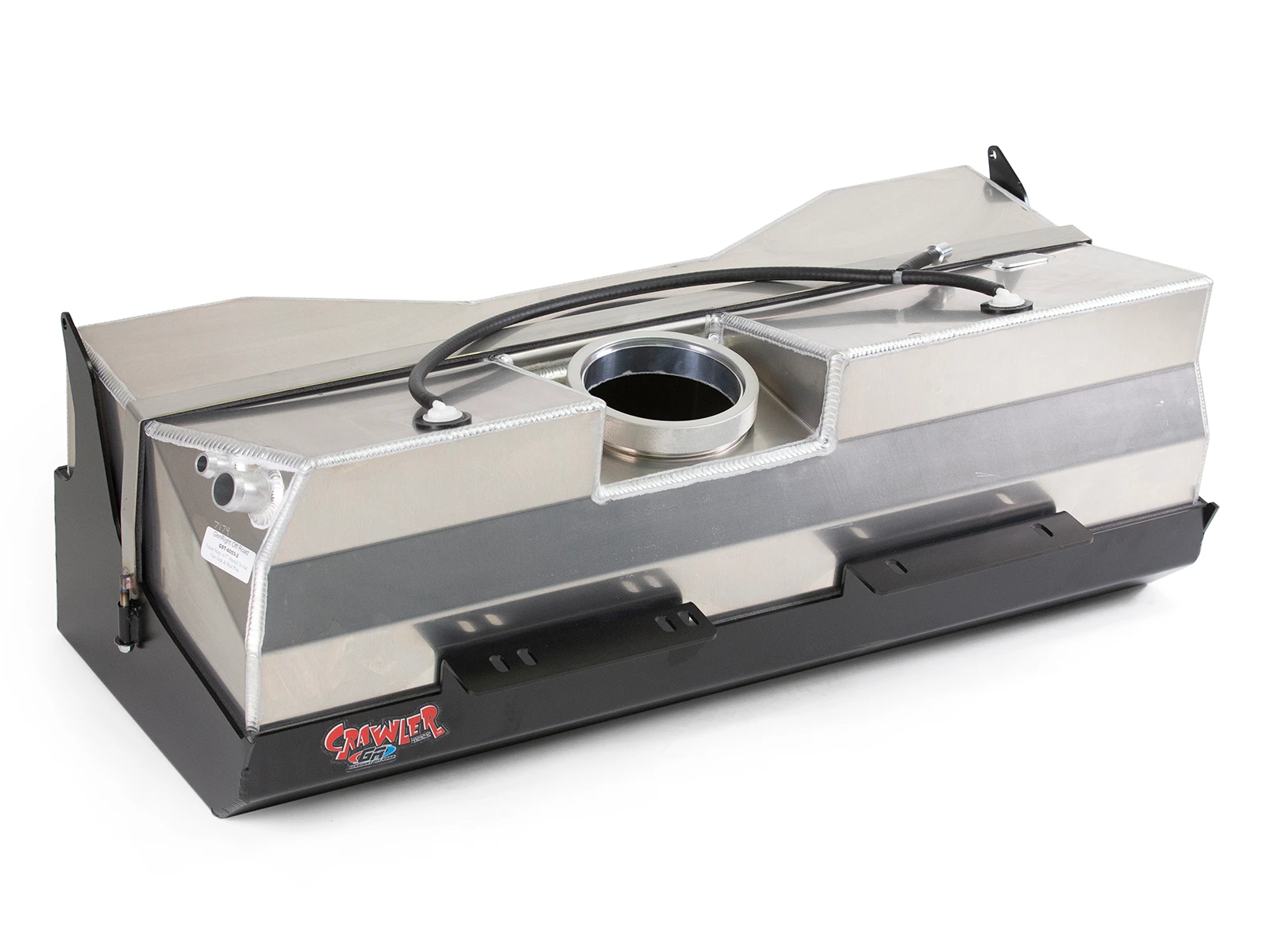

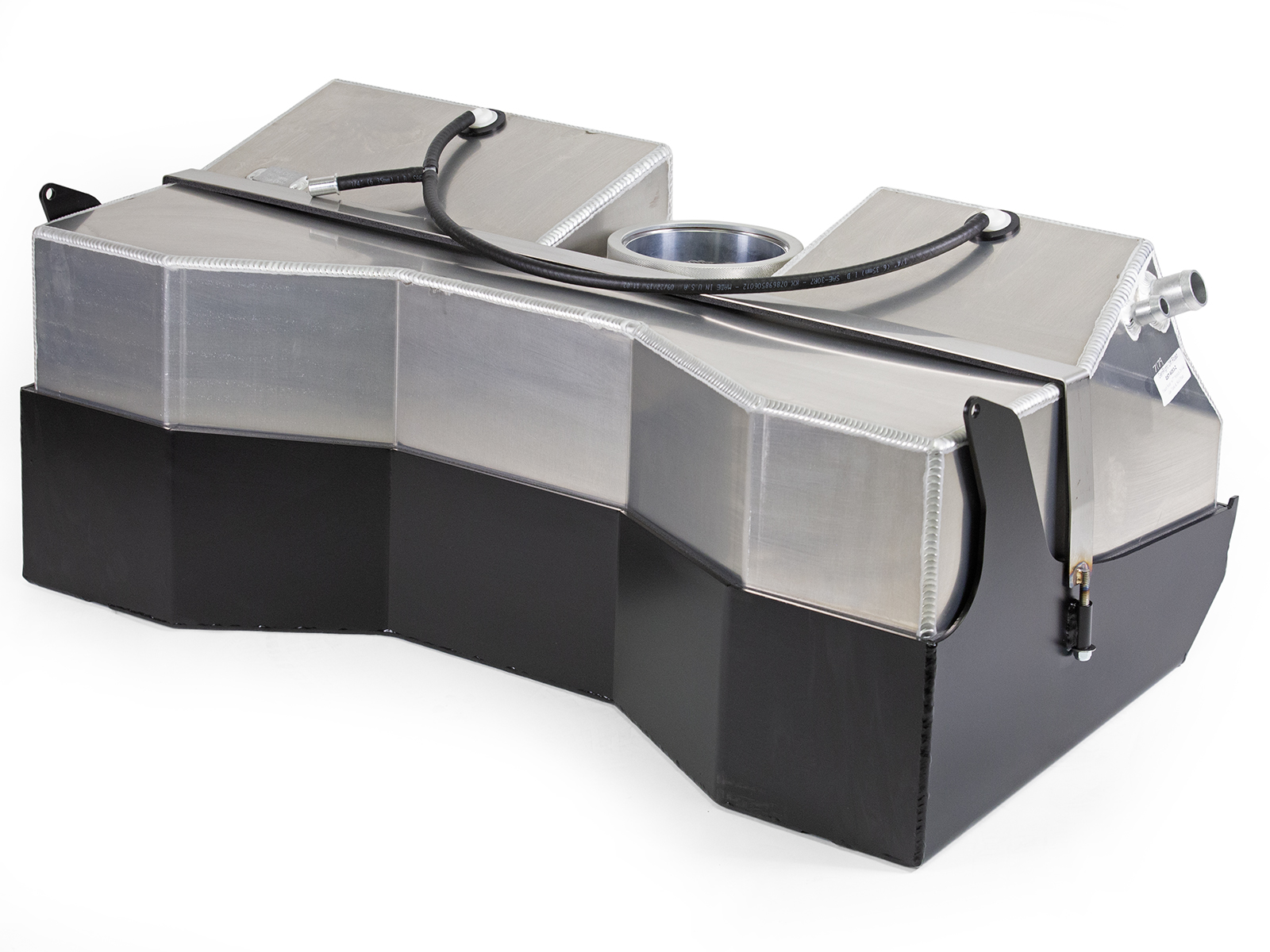

This is a larger 26 Gallon capacity fuel tank is designed to work with the Jeep LJ 2004-2006 and the GenRight TJ to LJ Conversion Kit. with Rock Jock 70 rear axles and 7" Stretch.
P/N: GST-6053
Features:
- 1" more ground clearance than stock.
- Improved departure angle.
- 26 gallon fuel capacity.
- New larger 1-3/4" fill and 3/4" vent fittings.
- Makes more room for BIG aftermarket axles.
- Shape allows for 7" of rear wheelbase stretch with a Rock Jock 70
- Mounts in stock tank location, but designed for use with coilovers.
- Stock mounting location keeps center of gravity low in the vehicle.
- Accepts the stock Jeep fuel pump & EVAP equipment.

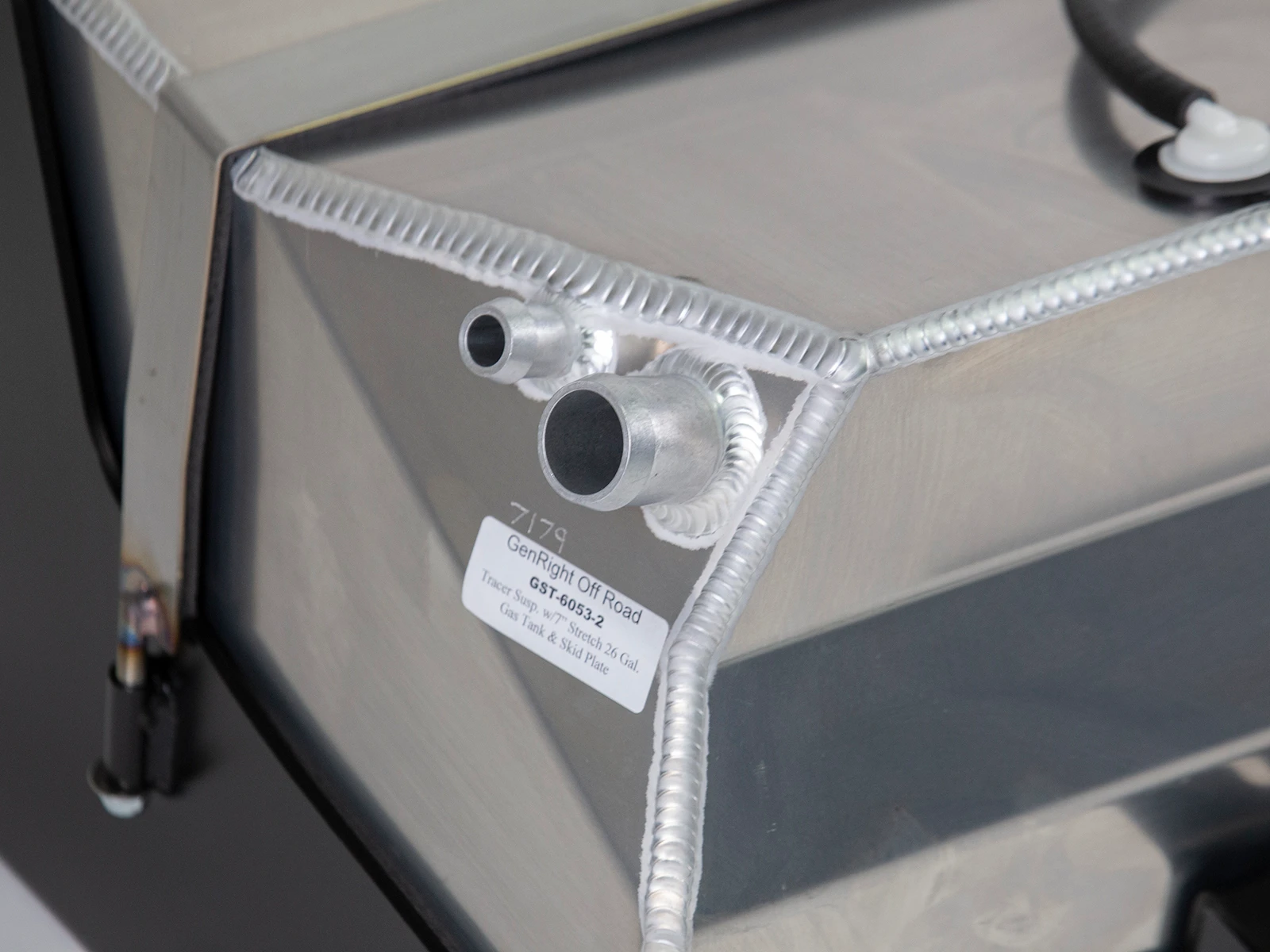

- 1/8" thick Aluminum alloy tank is TIG welded.
- Foam liner between tank & skid plate.
- New style 3/16" thick heavy-duty steel skid plate.
- Assembled with stainless steel straps.
- Includes new factory Mopar roll over / vent valves.
- All tanks are 100% pressure tested.
- Made in USA.
• For Jeeps 2005-2006, Please select GST-6053-2
• For Jeeps 1997-2004, Please select GST-6053-1
The assembly mounts in the factory location and is designed to work with all your factory emissions equipment so you won't get any check engine lights or have computer issues.
Fitment:

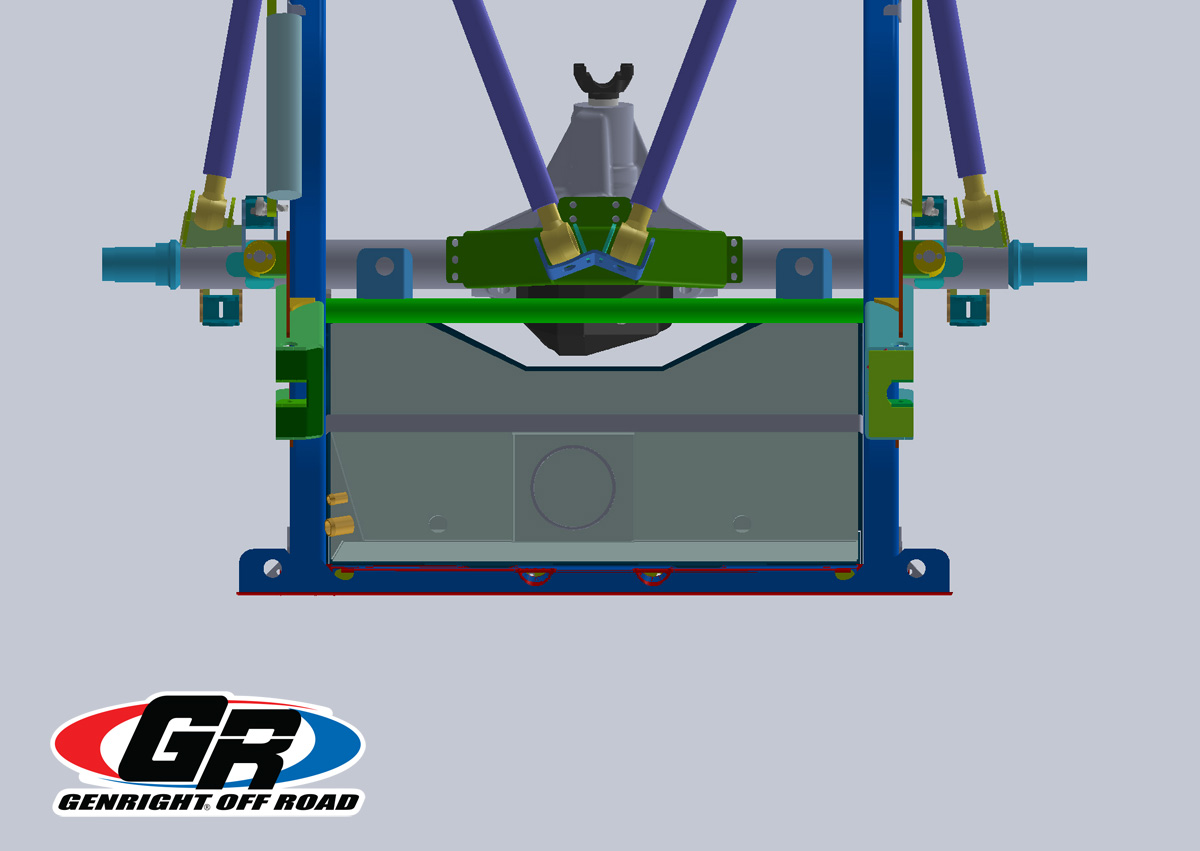

- Jeep LJ 2004-2006, (with forward rear cross member removed, see picture) and any TJ to LJ conversion from 1997-2006.
- GenRight's TJ to LJ Stretch Kit 1997 to 2006
Additional Notes:
- We offer a billet fuel fill (GST-5002) that will allow easy adaptation to the larger fittings, but it can be done with the stock filler and some adapters for the hoses.
- Because of shape and location changes, installation of this product WILL require changes to the last 24" of the exhaust tail pipe.
- A small (1") body lift maybe required for clearance on top of the fuel pump module.
- Try our Fuel Pump Access Panel kit, it is a great upgrade at time of installation!
- Fits with Currie brand Anti-Rock type rear sway bars. Due to the fact that this tank is pushed back 5", the installer will need to carefully pull the fuel line and electrical a little rearward to reconnect them to the fuel pump (not a problem- there is plenty of length in the line to reach).
- Your Jeep must be outfitted with GenRight's outboard coil overs to install this model tank (100% will not work with standard coil springs in the rear. If you are running coil springs, please use GenRight gas tank: GST-2002
- We offer a less expensive fuel tank model with a 20 gallon capacity, that works with each year fuel pump modules: GST-2054.
- If using the Aeromotive Phantom fuel pump module, please use our Aeromotive Fuel Pump Adapter for 2005-2006 models
- This product WILL NOT deliver without a person to sign for the delivery.
