MADE IN THE USA

3 Link Front Bracket Kit, Chassis side (Unwelded)

$149.99
1 review Write a Review
P/N:
BKT-1116*

This is what the public has been asking for!

A low cost DIY "builders kit" of our popular 3 link Front suspension brackets (not welded).

We have figured out all the mounting points for proper geometry (bump steer, anti-squat, etc.) to make your rig a top notch crawler with awesome articulation AND handle great on the street too!

The frame side control arm mounts are formed into a "C" section of steel that wraps over the Jeep's frame to beef up the mounting area and help distribute the load.

You save BIG by doing all the welding yourself!

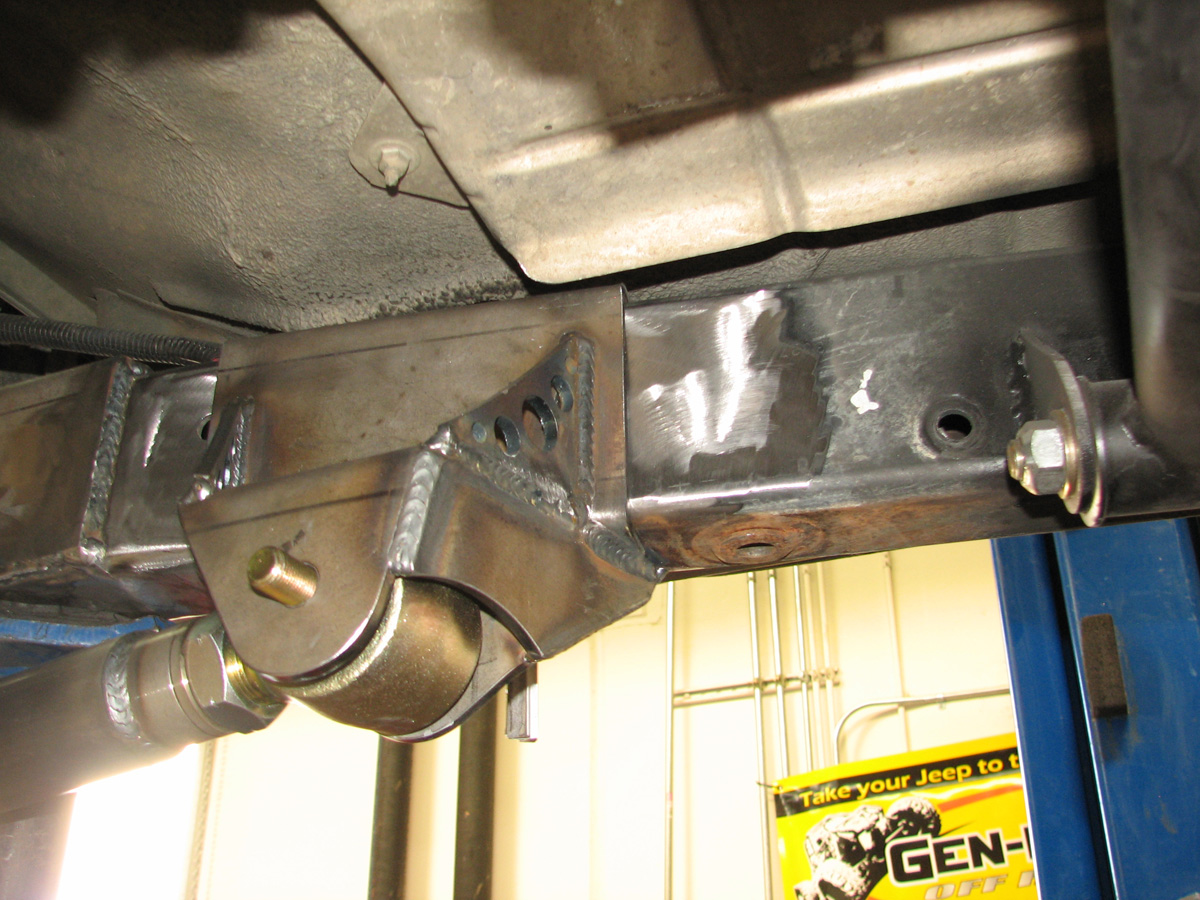

The brackets are designed to attach to the frame next to your stock (or aftermarket) transfer case skid plate.


Front 3 Link Kit FEATURES:

  • Single upper control arm (to the top of the axle housing) allows the installer more flexibility to locate the upper control arm.
  • Lower overall ride height because the single upper link is easier to get around the engine & trans in your vehicle.
  • Having only 3 Links allows for a smooth, non-binding and INSANE amount of articulation.
  • Yes, this system requires a front track bar, that is sold separately.
  • These frame side control arm mounts DO NOT tie into the transfer case skid plate.

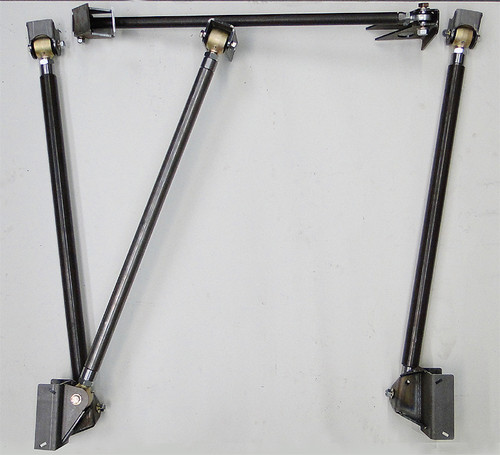

  • Upper Control arm can be mounted on Drivers or Passenger side, as shown in pictures, to best suit your build.
  • Designed to fit a Jeep TJ, LJ, YJ rectangular frame, but could be modified by the installer to fit a CJ-7 or any thing else.

This Bracket Kit INCLUDES:

  • Precision Laser Cut (some formed, as pictured) cold rolled steel pieces to build one pair of Heavy Duty 1/4 & 3/16" thick upper and lower frame side control arm mounts.
  • Step by step instructions to weld the pieces together in the proper order.

NOTES:

  • Sold as a pairs.
  • Additional shim spacers should be used by the welder to account for shrinkage (of the Johnny joint area) after welding.
  • This kit requires cutting and welding to install them on your vehicle's frame.
  • BONUS - All the pieces to build a 3 link (upper link on either driver or passenger sides) are included in this kit.
  • You will still need a trac bar between the frame and front axle. (FSM-1013 frame side & FSM-1004 axle side are sold separately).
  • These parts are also offered as a complete front 3 link kit (with a trac bar).
  • Genuine 1-1/4" shank Johnny Joints sold separately in left-hand or right-hand threads..
  • Control arm material is available in 2" (lower) and 1-3/4" (upper) thick wall steel DOM tubing, sold separately.
  • You weld the threaded bungs (left-hand or right-hand) into the tubing
  • We also offer the matching DIY rear 4 link mount kit (BKT-1117).
  • Look like to much work? We offer a pre-welded version of this product: Click Here
